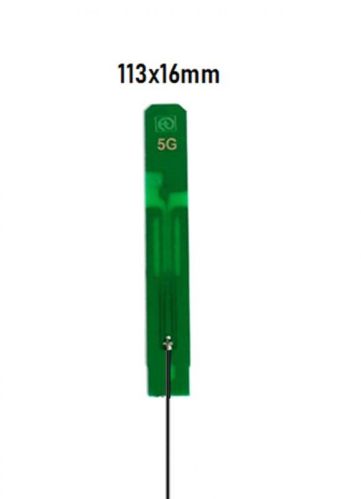

5G Internal PCB Antenna, Brand Name : Eteily

A 5G internal PCB antenna is a type of antenna designed to be integrated directly onto a printed circuit board (PCB) within electronic devices to support 5G wireless communication. Here are some key aspects to consider about internal PCB antennas for 5G:

Design Considerations

1. Frequency Bands: 5G technology operates across a range of frequency bands, including sub-6 GHz and millimeter-wave (mmWave) frequencies. Internal PCB antennas must be designed to operate effectively across these bands, which might require different designs or tuning for each band.
2. Size and Form Factor: Since these antennas are internal, they must be compact to fit within the confines of the device. This can be challenging, particularly for mmWave frequencies, which have higher wavelength constraints.
3. Antenna Types:
   • Monopole: A simple and common design, effective for a range of frequencies.
   • Dipole: Provides a balanced radiation pattern and can be used for various frequency bands.
   • Patch: A type of microstrip antenna that can be tuned for specific frequency bands and is commonly used for compact designs.
   • Inverted-F Antenna (IFA): Often used in mobile devices due to its compact size and good performance characteristics.
4. Performance Metrics:
   • Gain: Measures how well the antenna directs radio waves in a particular direction. Higher gain can improve signal reception and transmission.
   • Efficiency: Indicates how effectively the antenna converts input power into radio waves. Higher efficiency means better performance.
   • Bandwidth: The range of frequencies over which the antenna operates effectively. A wider bandwidth is often needed for 5G to cover multiple frequency bands.
5. Integration with PCB: The antenna needs to be designed in conjunction with the PCB layout. Proper placement and routing are crucial to avoid interference with other components and to maximize performance.
