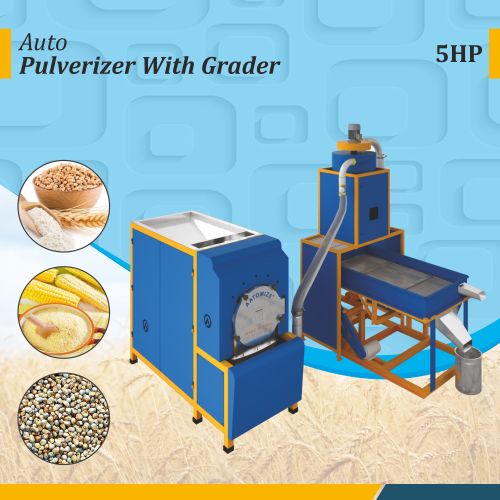

5HP Atta Chakki with Cyclone & Grader

The AATOMIZE AZAGC502A is a 5HP 3-in-1 multifunctional pulverizer machine, integrated with a cyclone separator and a vibro atta grader, specifically designed for dust-free grinding and flour mesh separation in a compact footprint. With its double chamber body, dual hopper, and dual beater setup, it efficiently grinds wheat, maize, pulses, turmeric, chili, and herbal materials, while grading the final flour output into multiple mesh types for packaging.

Built for retail flour outlets, herbal powder suppliers, small food units, and private label brands, this machine ensures clean operation, consistent particle size, and value-added grading functionality.

• Model: AZAGC502A

• Main Motor Power: 5HP (Three Phase – 415V)

• Cyclone Motor: 0.5HP

• Grader Motor: 0.5HP

• Main Motor RPM: 2880

• Beater Speed: 3840 RPM

• Processing Capacity:

  • Grains: 40–55 kg/hr

  • Spices: 35–45 kg/hr

• System: Double Chamber + Cyclone + Atta Grader

• Output Quality: Fine Powder with Multi-Mesh Sorting

• Material: Powder-Coated Mild Steel

• Power Consumption: ~5.5–6.0 kWh

• Automation Grade: Semi-Automatic

• Warranty: 1 Year (Motor & Machine)
