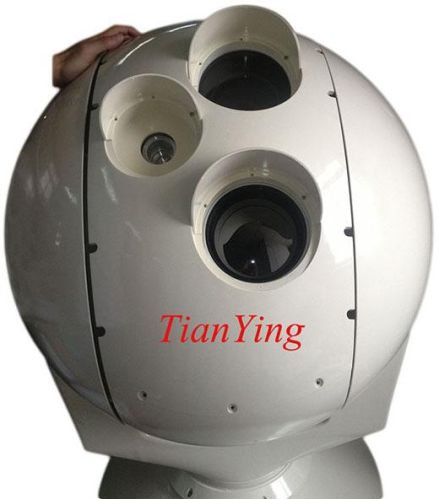

5km/7km Electro Optical Tracking Infrared Thermal Camera System

China TianYing EOST-330M electro-optics system deliver for coaxial alignment target, stable tracking surveillance, effective accurate measurement, and detection human beyond 5km.
EOST-330M thermal camera system offer precise information and clear view, which is why TianYing Optical seeks to offer the most reliable surveillance solution. It is a fully stabilized, compactly designed surveillance system which bundles various state-of-the-art sensors. Thus, offering the user a large variety of functions comprised in only one device.
The EOST-330M thermal camera system is installed in platforms on land vehicles, ships or tower. it is available as a stand-alone unit or can be fully integrated into CMS systems.
EOST-330M Tracking Surveillance EO/IR Thermal Camera System Features: 1. Day and night reconnaissance, detection, identification and stable tracking of sea, land, and some air targets.
2. Maximum threat recognition solution with the lowest cost of ownership.
3. Highly reliable system capable of operating in the harshest environments.
4. Ruggedized two axis stabilizing gimbal system capable of wind-proof grade 12.
5. Longest range uncooled thermal imager, recognize human 3km, recognize vehicle 7km, recognize boat 7km.
EOST330M tracking surveillance thermal camera system recommended use:  1) Maritime Patrol.
All weather surveillance, day/night long stand-off range detection, identification and tracking of naval target, land target and some air target.
2) Search and Rescue
All weather, day/night detection of naval units in distress and/or men at sea.
3) Coast Guard/Border Suveillance/Police Operations.
All weather, day/night detection, identification and tracking of illegal activities (immigration, smuggling, poaching, etc...).
4) Land Operations.
All weather, day/night support to surveillance, reconnaissance, target detection and track task.
EOST-330M Tracking Surveillance EO/IR Thermal Camera System Specifications:
Model
EOST-330M
THERMAL CAMERA
Detector
Uncooled FPA
Pixel
 >640x512
Spectral band
8μm~14μm
Pixel
17mm x 17mm
Focal length
100mm/330mm
DAY LIGHT CAMERA
Detector
 1/1.8" CMOS
Focal length
30x optical continuous zoom lens
Resolution
1920×1080
LASER RANGE FINDER
Wavelength
1.57μm
Ranging
10km for 30% reflection 5m² target in visibility 25km
Measuring rate
2Hz continuous 25 seconds
Measurement accuracy
+/-1m
SERVO
Stabilization accuracy
typical 1.3mrad(1σ), option 0.2mrad.
Turret direction range
azimuth:360° continuous; elevation:+45°~-45°
TURRET MAXIMUM ANGLE SPEED
Azimuth
≥20°/s
Pitch
≥20°/s
ENVIRONMENTAL
Operating temperature range
-40ºC ~ +60ºC
Storage temperature range
-50ºC ~ +70ºC
Protection level
IP66, wind-proof grde 12
POWER
Power Supply
DC 24V
PHYSICAL
Sweeping radius
≤ 750mm
Hight
≤ 1360mm
Weight
≤ 200kg (exclude installation base)
Note
1, Technical information is subject to change without notice. 2, Depending on the region of sale.
