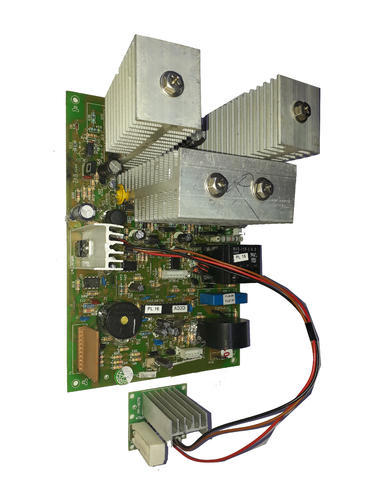

5KVA DSP Sine Wave Inverter Kit

Features :

• D.S.P. Based Less Components, Small Size, More Efficiency
• Peak Load Handling Capacity Is Three Times Of Rated Capacity; Can Smoothly Start Heavy Motors.
• Soft Start Features; Protects Appliances At Startup.
• Supply Pure Sine Wave Power; With Low Thd.protects Sensitive Office Equipment.
• Low Maintenance Cost.
• Software Controlled Auto Self Testing.
• Over Load And D.c. Low Protection.
• Computer Compatible Ups Operation.
• Intelligent Auto Sense; Continuously Monitors Health Of System.
• Ac Input Low And High Voltage Cut Off Protections In Both, Inverter And U.p.s. Modes.
• Inv (90-290)v,ups (180-260)v
• Constant Voltage/constant Current Pulse Charging With Wide Input Range (140-280)v.
• (charging Current 1-15ampr)
• Silent Operation Of Fans, Tube Light Or Appliances.
• Software Controlled Auto Reset Feature For Over Load, Short Ckt And Low Battery
• Fully Protected Against Short Circuit Of Ac Mains With Output.
• Phase To Phase Short Circuit Protection.
• Low No Load Current For Prolonged Battery Operation Under Standby.
• Crystal Controlled Operation.
• Built In Cooling Fan.
• Fold Back Current Limiting Protection For Short Ckt Surge Load & Over Load.
• Thermal Shutdown. (in case Of Fan Failure).
• Can Charge Deep Discharged Battery(6.2v)
• Reverse Battery Protection (optional).
• Solar Charging Facility (optional).
• Generator Compatible(45hz To 55hz)
• High Efficiency; Better Than 85%.
