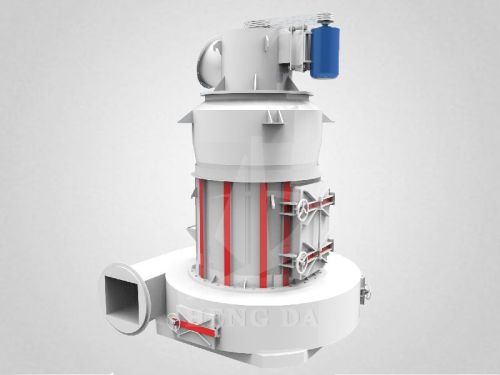

5R4128 High Pressure Raymond Grinding Machine, Brand Name : Hengda

5R4128 specifications:
Ring diameter: 1270 mm
Roller size: 410*280mm
Center speed: 105-115rmin
Max feeding size: 25mm
Final product size: 80-400mesh
Capacity: 2-15th
Dimension: 10100*9300*8300mm
Total weight: 28.5ton
HD series feature:
1.Reduce the roller and vibrate and improve the production.
2.The increase mechanism of linkage pressure of the rollers, which greatly prolongs the useful life of the equipment and increases the capacity by 20% under the same power.
3.With the original roller assembly, the oiling time increased 6 - 15 times, acheive the application of oil once, use for 30-45 days.
4.High efficiency and stability, the ring and roller always contact during processing, the efficiency and stability of the grind are improved.
5.Higher Accuracy powder Classify, without coarseness missing.
6.High efficiency and energy-saving centrifugal blower.
7.Low noise and vibration: with the reasonable set of Collocation of above, the HD series has the advantages of high production, high qualification rate Low noise and vibration in grinding of the 325-400 meshes.
8.It's applied to the non-metallic non-flammable non-explosive minerals with water content less than 6% and the Moh's hardness under 6.
