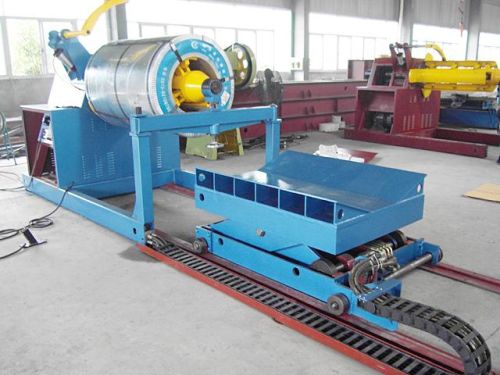

5T/10T Hydraulic Uncoiler With & Without Coil Car

GBP 10200 / 16900 16900 Set

MOQ1 Set(s)
RunningAutomatically
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Shanghai Allstar Roll Forming Machinery Co. Ltd

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2003

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

5Ton Hydraulic Uncoiler:
Hydraulic decoier: active uncoiling,hydraulic to expand
Weight capacity of decoiler:5 tons
Width of steel coil (Max): 1250mm
ID: φ470-φ620mm;
OD:φ1500mm Max.
Material of main shaft:40Cr
Motor power of decoiler: 5.5 kw
Hydraulic motor power:4 Kw
Uncoiling speed: 0-12m/min
Capacity of hydraulic station: 40L
Hydraulic system pressure: 6.3MPa
Pneumatic pressure:0.8Mpa.
10Ton Hdyraulic Uncoiler with Coil Car:
Motor power of uncoil:7.5 KW
Power of hydraulic expansion:4KW
Raw material:Color steel sheet\Aluminum sheet
Inner diameter of coil: 508mm.
Outer diameter of coil: φ1220mm.
Weight of coil: 10T
Thickness of sheet:0.3-1.2mm
Width of sheet:1220mm
Speed of uncoil:0--15m/min Max.
Hydraulic system pressure of uncoil :6.3Mpa
Hydraulic oil jar lift stroke:up panel 0.65m, down panel 0.65m
Coil car stroke:2.5m
Pressure of hydraulic system:6.3Mpa
