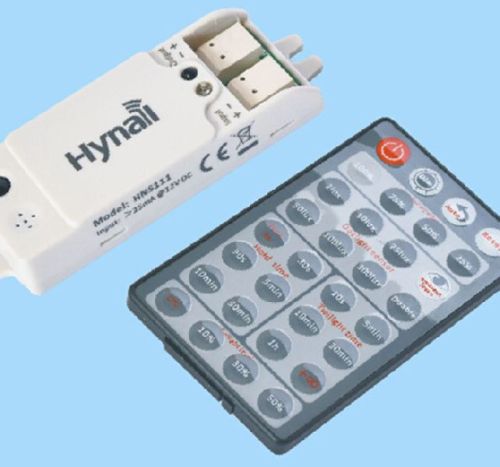

5V/12V DC Input Microwave Motion Sensor

5v/12v dc input microwave motion sensor – highbay versionrndc input motion sensor modulernhighbay dc input motion sensorrnhns111hbrn5.8ghz c-band microwave.
input voltage 12v dc (5v & 24v dc version available on request).
input current:≧25ma.
featuresrn5.8ghz c-band microwave.
input voltage 12v dc (5v & 24v dc version available on request).
input current:≧25ma.
0~10v dc output signalrnsuper compact, flexible to be integrated into any suitable fixtures.
dual ﹣ pd technology, real daylight monitoring function for built-in application.
ir remote commissioning, easy setting and user friendly.
detection range up to 18m in diameter.
mounting height: 10~12m.
operation temperature: -20℃ ~ +70 ℃rnrohs compliant.
settings(remote control ir12)rnpermanent on/off functionrnpress “on/off” button, fixture goes to permanent on or permanent off mode, sensor is disabled.
*press "auto" ,"reset" or "ambient learn" to quit this mode.
dim +/-rnpress "dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.
*after desired brightness is locked down, if user wants to dim again reversely, just press the “dim” button again and then lock down the new brightness again.
sensor modernpress "auto" button, the  sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.
reset functionrnpress "reset" button, all settings go back to factory default settings.
factory default settings－－
        sensitivity=100%
        daylight sensor=disablern        hold time=90srn        twilight time=5minrn        twilight level=10%
