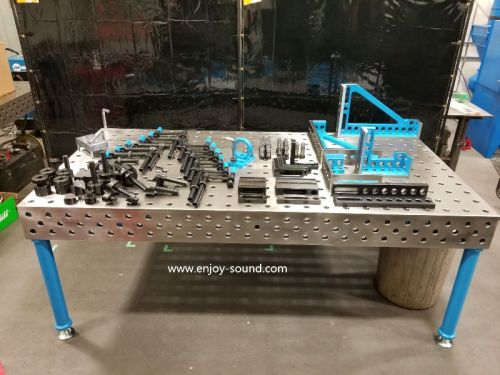

Contact SupplierWelding tables are available in sizes from 1000x1000mm up to 4000 x 2000mm.
Technical data of our 3D welding table:
1. The weight bearing for 3D welding table is 2 tons.
2. The surface flatness:0.1/1000mm.
3. Surface Roughness:Ra3.2.
4. The thickness of welding table is 25mm
5. Hole diameter: 28mm
6. Hole separation: 100mm
All DCT welding tables benefit from an incredible array of fixturing and positioning accessories. This allows for highly-accurate measuring, positioning and clamping of work directly on the table - saving time and money.
System 28 tables feature 28mm precision drilled holes, with a grid and drilling distance of 100mm.
System 16 tables have smaller 16mm holes, with a reduced grid and drilling distance of 50mm.
