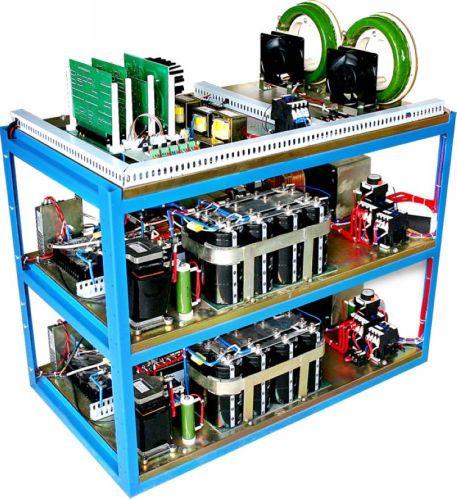

Contact SupplierWe offer 612KW YAG Pulsed Xenon Lamp Pumped Power Supply
YAG Power Supply for Laser Welding Machine
1. Main feature:
1. Single chip computer and analogous circuit
2. Adopts constant current and voltage regulation
3. Adopting high frequency IGBT module
4. Mutiple protection avoid fault broading
5. Intelligent fault detection
6. Preset output parameters can be operated on management computer
7. Energy feedback loop makes welding more stable and consistent.
8. Modular design optimizes production and maintance.
2.Specification:
Input voltage: AC380 +_15% 5060 Hz
Control current: 100-600A
Pulse width: 0.2ms-10ms
Laser frequency: 1Hz-100Hz(0Hz jogging control)
Output power: not less than 6KW(Single lamp), not less than 12KW(double lamps)
Parameters setting: Max 100 waveform parameter can be set, each waveform is composed by max 15 sections
Environment: Operating temperature: -5-40 degree
Relative humidity: Without dew less than 80%
Dust: Less than 0.01GM3
Dimension: Integrative type 770*610*940 mm
Split type --single lamp-482X525X267 mm(single enclosure)
Double lamps 482X525X267mm(unit 1)
482X525X200 mm(unit 2)
