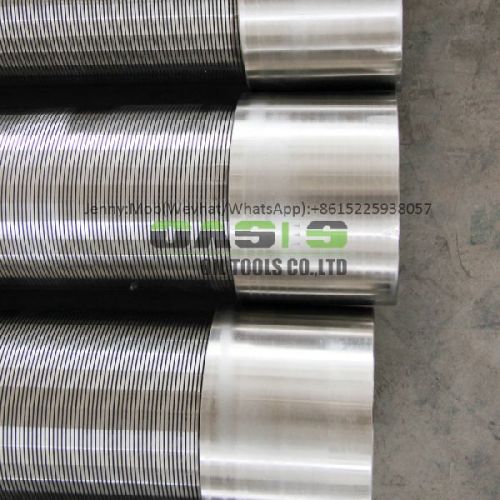

6 5/8'' Water Well Screens 304 Steel Screen For Water Well

₹ 11,584 / Set

MOQ10 Set(s)
BrandOasis
Material304, 304l, 316, 316l water well screens
CertificationISO
Conditionnew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Number Of Flowercylinder type mesg screen,water well screen
Material304, 304l, 316, 316l water well screens
CertificationISO
Applicationwater well drilling
Conditionnew
Connection waythreaded ends, welded ends, flange
BrandOasis
Lengthusually 5.8m, up to 6m
Out diameter6 5/8''
Product name6 5/8'' Water Well Screens 304 steel screen for water well
Slot range0.02mm~15mm

6 5/8'' water well screen for deep water well drill slot wedge wire thread/plain END connecttion

Oaiss Oil Tools Co., LTD, which is the munfacturer of the

water well screen, which also could used as oil well screen, wedge wire screen, water strainer, johnson screen, v-shaped screen, vee wedge wrapped screen, wire wrapped screen, wire point pipe,etc.

Specifications of Johnson wire point pipe/ wedge wire well screen
Slot size (mm)	0.10, 0.15, 0.2, 0.25, 0.30 - 3mm
Lengths	6Mts. & 3Mts, we suggest 5.8m(adapt to the container)
Grades	Different grades suitable for tube well depths up to 300ft, 600ft, 900ft , and 1500ft.
Material	Low Carbon Galvanized Steel (LCG) and Stainless Steel (SUS304, SUS304L, SUS316, SUS316L) or can be made according to the customers requirements
Diameter	ranging from 15 to 275mm
End Connection	Plain beveled ends for butt welding or threaded.(We can customize)
Open area	up to 60%

Additional Information

Payment Terms L/C, D/A, D/PT/T
Port of DispatchQingdao/Tianjin/Shanghai
Packaging Details1.wrapped by woven bag 2.wrapped by bubble bag 3.fixed by wooven strip
Delivery Timewithin 20 days
