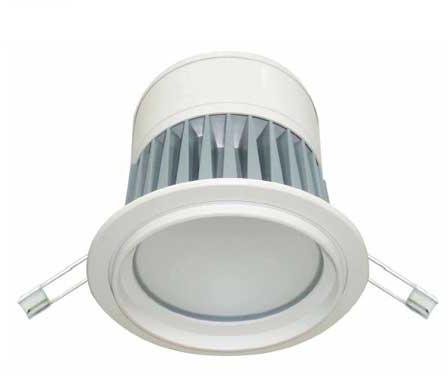

6" LED Halogen Downlight

We are offering 6" led halogen downlight. 6" led halogen downlights is designed ideally for replacement of 18/26w cfl downlights with 12 high power osram golden dragon plus leds. The design of 6" led halogen downlights offered under the brand name of the luxpointtm midi (osram) is engineered for energy efficiency, longest usable life and highest illuminance. major benefits

• ideal replacement of 2x18w cfl downlight
  • 800 lm output
  • illuminance level can be up to 2x18w cfl luminary
• extra long life time >35,000hrs
  • 5 times longer than cfl, hassle-free no replacement is needed.
• uniform & high quality optical design
  • anti-glare diffuser ensures uniform light distribution
• simple & easy installation
  • universal voltage 120~240v

applications

• downlighting
  • indoor use (ip21)80o wide flood beam angle version is ideal for general illumination
  • suitable for hotels, apartments, offices & shop lighting

specifications modelkit lxpt md wt w4f-830-l80kit lxpt md wt w4f-840-l80light outputlumens (lm)750 lm800 lmcandela (cd)450 cd500 cdbeam angle80o80opower20 w20 wefficacy (lm/w)38 lm/w40 lm/wcct (k)3000k4000kcri>80>80lifetime (ta @ 25oc)35,000 hours35,000 hourselectricalinput (v)120 ~ 240 vcurrent (a)0.1 ~ 0.5 afrequency (hz)50 ~ 60 hzpower consumption20 wpower factor0.5 @ 120v,60 hz, 0.4 @ 240v ,50hzmechanicaldimension (mm)ø140 x 120 (h) mmmounting holesø 125mmallowable mounting surface thickness2~20mmopticsreflector with polymethylmethacrylate (pmma) coverweight (g)780 gtemperatureambient (oc)-30..35ocoperation humidity (h)20 ~ 95% rhstorage (oc)-40.....80ocstandard complianceip ratingip21class of luminairesclass iiapproval luminaireiec 60598-1 ; iec60598-2-2; en61000-3-2, en55015; en61547approval power supplycb; en55015; en55022; en61000-4-2; en61000-4-2,3,4,5,6,8,11; en61547; en55024flammabilityff, mmenvironmentrohspackagingstandard white boxincludes: i) installation manual note

• due to the special conditions of manufacturing processes of led, the typical data of technical parameters can only reflect statistical figures and do not necessarily correspond to the actual parameters of each single product which could differ from the typical data.
• exceeding maximum ratings for operation voltage will cause hazardous overload and will likely destroy the led module.
• exceeding maximum ratings for operation and storage temperature will reduce expected life time or destroy the led module. The temperature of the led module needs to be measured at the tc-point according to en60598-1 in a thermally constant status with a temperature sensor or a temperature sensitive label. For exact location of the tc-point see drawings.
