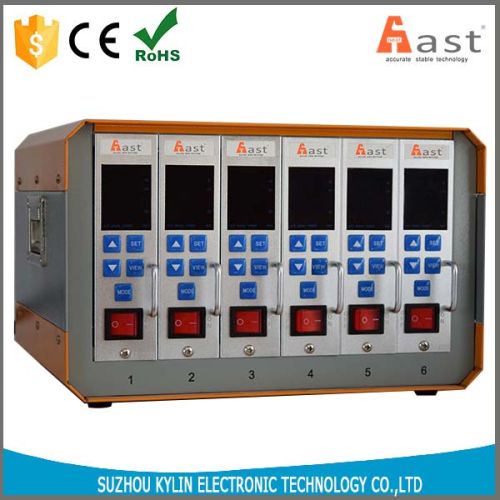

Contact SupplierWe are offering 6 zones hot runner temperature controller.
The kt-300s temperature controller is assembled with single-point temperature control cards. Each card only controls the temperature of one hot point. The display of control card can show preset temperature, actual temperature and alarm, and you may set temperature parameters via the display.
The advantage of single-point controller is that one circuit board has one corresponding heating point so the display is the clear, operation and repair are simple and easy. But the temperature controller occupies a large space due to its large volume in case of numerous hot runner control points.
Technical key features:
control accuracy: ±1°c
temperature precision : 0.1°c
temperature unit: °c or °f (menu-selectable)
temperature range: 50 ~ 550 °c
thermocouple: type j or k
operation mode: auto, manual and standby mode
process sampling rate: 100 ms
temperature stability: ±0.5%
output: pidpidd
overload protection: field-replaceable fuses
load: 15 a, 100 w~3600 w
