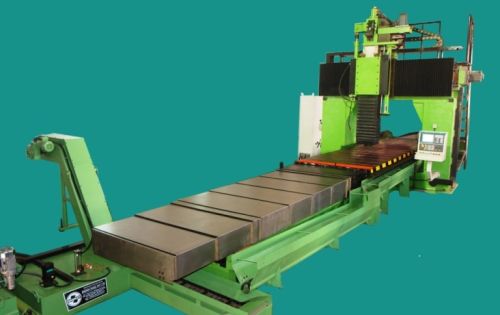

CNC Double Column Milling Machine, Size : 6000x1500mm

Size6000x1500mm
Number Of FlowerBridge type resting on two columns
Repeatability±10µm
Positional Accuracy±10µm for 300 mm. 0.05mm for entire length post laser calibration.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Size6000x1500mm
Number Of FlowerBridge type resting on two columns
Stroke1800 mm
Lubrication system for axesCentralized lubrication system integrated with PLC
Rapid traverse rate5000 mm/min
Drive systemServo driven in combination timer belt – pulley and ball screw-ball nut arrangement.
Ball ScrewØ63, 10 pitch, double nut, C3 class, ground and preloaded
Repeatability±10µm
Slide end stop limit switch arrangement1st safety precaution is soft limit in servo program, 2nd safety precaution is multiple plunger type limit switch which ensures fail proof stopping and 3rd precaution is a mechanical dead stop.
Bellow cover protectionCollapsible bellows
Feedback systemLinear scale
Feed traverse rate30-5000 mm/min
Motor Power36 Nm
Wipers for slidewill be provided
Positional Accuracy±10µm for 300 mm. 0.05mm for entire length post laser calibration.
Guideway detailsGround LM guides and blocks

we are working on a Large Double Column Vertical MillDrill Machine which has a table of 6000x1500mm, stroke of 6230mm and admit between columns is 2000 mm.
