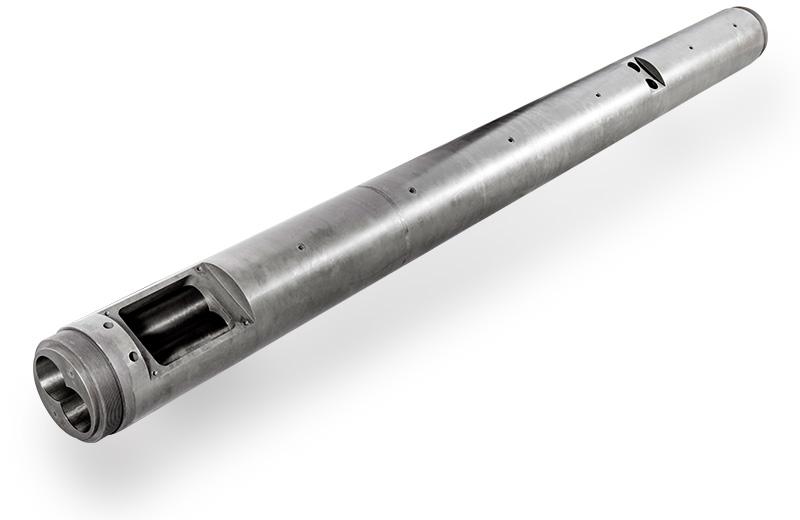

60mm Alloy Screw and Barrel For Injection Molding Machine

₹ 1.07 Lakh / Barrel

Supply TypeManufacturer
Preferred Buyer Location All Countries Except India

Company Information

Zhoushan Batten Machinery Technology Co Ltd

Member Since 4 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

60mm Alloy Screw and Barrel for injection molding machine Specification （Mould Clamping Force）:250~3200KN,（Shot Weight）30~80000g （Diameter of screw）: φ20mm~φ300mm Screw can be matched with different heads, and barrel can be matched with different nozzles. Brand Name:BattenMaterial:38CrMoAlAProcess:BimetallicHardening Hardness:HB280-320Nitrided Hardness:HV900-1000Nitrided Case Depth:0.45-0.8mmNitrided Brittleness:Less than Grade 2Surface Roughness:Ra 0.4Screw Straightness:0.015mmGuarantee:One yearApplication:bimetallic injection JSW barrel and screw Application House holding / Pipe fittings and other plastic injection products
