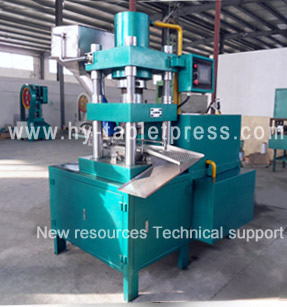

60T Hydraulic Tablet Press

60T Hydraulic tablet press
Applications: Compared with other hydraulic tablet press machines, model 60T and 45T are of small working pressure, but in same operation and manufacturing way. Model 60T is widely used in production of candy pieces, chocolate, fertilizer tablets, IC components, effervescent tablets, ceramic powder products and so on. Because of its excellent operation function, it is very popular in the market.
Model features: 60T Hydraulic tablet press
*Its production process is of high precision and high reliability with a hydraulic system.
*It can be in automatic production or by manual control.
*It has a PLC program and all operation actions can be adjusted in a better state.
Technical Parameters: All electrical parts of 60T Hydraulic tablet press are controlled by the PLC program, and all action can be adjusted following the time. The 60T machine is made by the imported hydraulic components and of double suppression, which results in high precision and good accuracy. We can recommend you the suitable machine according to your finished tablets' size and shape.
Model 60T Hydraulic tablet press
Max pressure 600 KN
Max length of upper punch 200 mm
Max depth of fill 150 mm
Max diameter of down punch 200 mm
Max diameter of tablet 150 mm
Max thickness of tablet 300 mm
Production capacity 480-600 pcs/h
Error ±0.02 mm
Motor 7.5 Kw
Net weight 2500 kg
