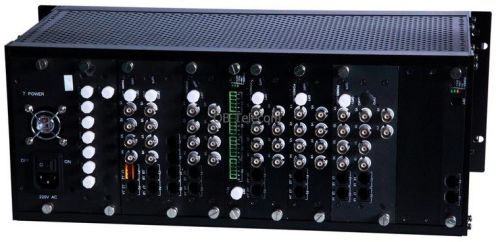

we offer 64 Channel Video Fiber Optic Multiplexer.
OB64-XD transmits maximum 64 channel of composite video over one single mode fiber. Additional multi-channel bi-directional audio, data (RS232, RS422/485), contact closure, telephone, and 10M/100M Ethernet signal could be added to provide cost effective solution for enhanced application.
Features
Exceeds the RS250C standard for SNR, DG and DP
8MHz bandwidth, SNR>65dB
8/10 bit digital PCM video coding
Compatible with NTSC, PAL and SECAM
Flexible configuration combination of audio/data/contact closure
24- bit digital audio, 85dB SNR
RS232, RS422, RS485 or Manchester data
Data transmission rate DC to 115200bps
Super optical dynamic range, 0Km is not saturated
Transmission distance up to 80KM
Supported by OB Telecom standard network management system
Rack-mount in 19" 2U/4U chassis
Ordering Information
OB64-24D 24 channel video Tx/Rx
OB64-48D 48 channel video Tx/Rx
OB64-32D 32 channel video Tx/Rx
OB64-64D 64 channel video Tx/Rx
