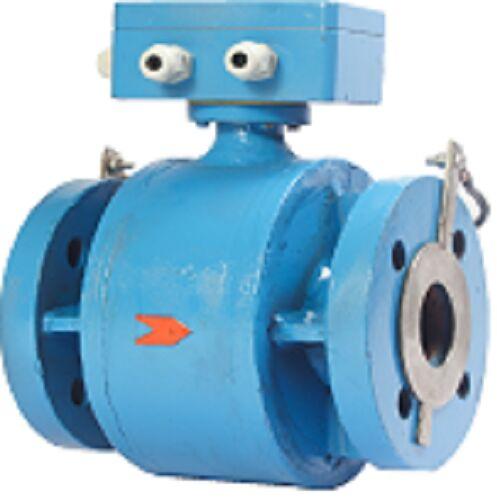

Contact Supplier“torque” make series 6400 ( full bore type ) are new range of bipolar pulsed dc full bore type electromagnetic flow meters. It is suitable for pipes with nominal diameters of dn 10 to dn 600 . They are based on faraday’s law of electromagnetic induction. The series 6400 meters features flanged construction and is available with choice of liner and electrode materials. Series 6400 has excellent accuracy and flow range ability. The meter is suitable for use on wide range of corrosive and aggressive range of conductive liquids.
• based on faraday’s law of electromagnetic induction
• suitable for pipe sizes of diameters 10 mm to 600mm
• coil assembly in hermetically sealed welded construction
• choice of ptfe / neoprene rubber / polyurethane liners
• integral or remote transmitter
• field interchangeable electronics
• optional led display for flow rate or totaliser indication in engineering units.
• no pressure loss
• absolute zero stability and noise elimination.
• measurement independent of liquid properties.
• display of flow rate directly in user specified engineering units
• negligible pressure loss
• maintenance free design due to absence of any moving parts
• high linearity due to characteristic magnetic field
