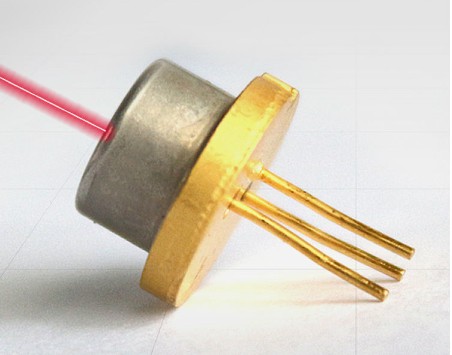

650nm 40/100/200/500mW Red Laser Diodes

MOQ50 piece
Operating current≤125 mA
Threshold current≤45mA
Optical output power≥40 mw
Monitoring current≥0.5
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Threshold current≤45mA
Optical output power≥40 mw
Lasing wavelength650±10 nm
Operating temperature-10~40℃
Operating voltage≤2V
Monitoring current≥0.5
Operating current≤125 mA

We are offering 650nm 40/100/200/500mw red laser diodes.
Features:
lasing wavelength:650â±10 nm
low threshold current(â�¤40ma)
output power 40 mw (cw)
index guided single transverse mode
standard to-18 package(î¦=5.6 mm)
high operation temperature (50â��)
low astigmatism, high reliability
applications:
indicator
pointer
