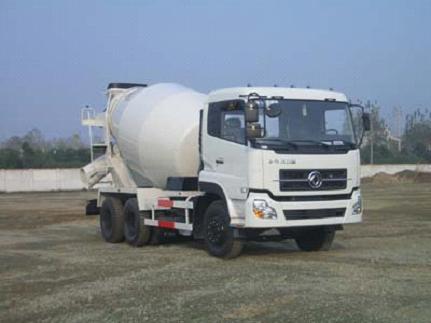

6x4 Concrete Mixer Truck(10cbm), Brand Name : Dongfeng

We are offering Dongfeng 6x4 Concrete Mixer Truck(10cbm). cabin d310 standard flat roof cab , half-floating and rear suspension mechanical cab, with shock absorber, hydraulic machinery tilt type , with air conditioner
vehicle main dimensions overall dimensions (l x w x h)mm
wheel base(mm)
wheel track (front/rear)mm
overhang(front/rear)mm
weight in kgs tare weight(kg)
payload(kg)
gross weight(kg)
performance&configuration max. driving speedã¯â¼ï¿½km/hã¯â¼ï¿½ 75 tank volume(mã�â³) 10
max grade ability(%) 30 hydraulic pump american eaton
min turning radius(m) 8.25 hydraulic motor american eaton
min ground clearance(mm) 250 speed reducer italian bonfiglioli
approach/departure angle(ã�â°) 25/12
engine horse power(hp) 340(250kw)
displacement(l) 9.7
type dongfeng cummins l340 30 , diesel,2200rpm,euro ã¢ï¿½â¢, max. torque :1350 nm, speed at max torque:1400r/min, 6 cylinders in line ,inter-cooling,
gearbox fuller 8-speeds 8js130t-b ,enhanced auxiliary gear, enhanced 1st gear
clutch ã�â¢430mm diaphragm spring clutch
steering gear power assisted steering
axles front axles: dana 7tons
suspension enhanced multi-leaf steel springs, and the number is 9/10
battery 12v, 90ah;2 units in series connection
tire 11.00r20 12units 11.00r20
brakes air brake system, split pneumatic circuit , parking spring brake acting on rear axles , exhaust brake
