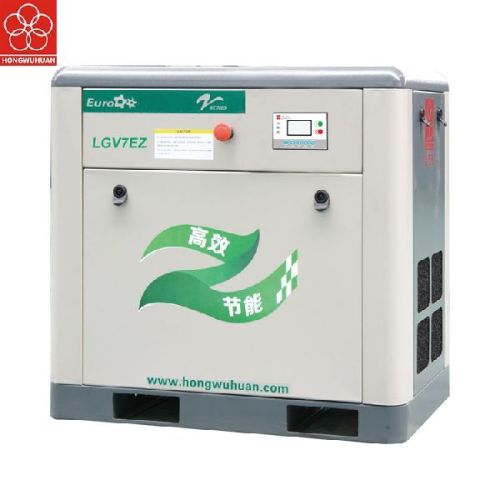

7.5kw 10hp Variable Frequency Vertical Screw Air Compressor

Hongwuhuan 7.5kw 10hp variable frequency vertical screw air compressors have good spare parts,such as control system,high efficiency motor  and efficient air intake valve; frequency changer can control the displacement by adjusting the motor`s speed based on the actual air consumption.uses the original well- known electronic control system,simple operation,convenient query maintenance. Ec series technical parameters                                                                                                                                                       model parameters lgv7ez lgv11ez lgv15ez lgv22ez lgv37ez lgv55ez air displacement m³/min 1.15 1.65 2.3 3.6 6.1 10.2 discharge pressure mpa 0.8 0.8 0.8 0.8 0.8 0.8 compressed stage single single single single single single motor power kw 7.5 11 15 22 37 55 motor speed rpm 2950 2950 2950 2950 2950 2950 power supply v/p/hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 start mode soft start soft start soft start soft start soft start soft start drive mode direct drive.
