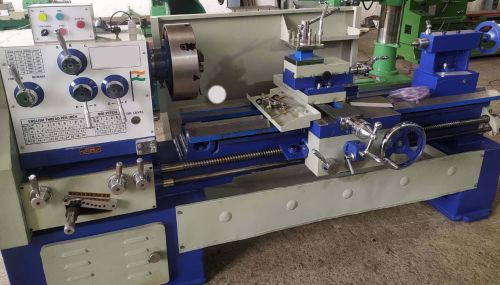

We are a leading Manufacturer, Exporter, and Supplier of the ELITE Machine 7 Feet All Geared Lathe Machine. This industrial machine, made of high-quality stainless steel, operates on 220V with a hydraulic driven type and automatic grade. With a bed length of 7 feet, it can handle a weight capacity of 100-1000kg. Designed for precision and efficiency, this automatic lathe machine is ideal for various industrial applications. Trust in the superior quality and performance of our ELITE Machine, proudly made in our country of origin.
| Length of bed | 61/2 Ft. | 81/2 Ft. | 101/2 Ft. | 12 Ft. | 14 Ft. |
|---|---|---|---|---|---|
| Width of bed | 375 MM | 375 MM | 450 MM | 500 MM | 550 MM |
| Height of Center | 300 MM | 300 MM | 400 MM | 450 MM | 550 MM |
| Swing Over Bed | 600 MM | 600 MM | 800 MM | 900 MM | 1000 MM |
| Swing Over Cross Slide | 325 MM | 325 MM | 530 MM | 600 MM | 630 MM |
| Swing In gap | 865 MM | 865 MM | 12000 MM | 1300 MM | 1400 MM |
| Admit Between Center | 100 MM | 1500 MM | 200 MM | 2500 MM | 3000 MM |
| NO’s of Spindle Speeds | 8 | 8 | 9 | 9 | 8 |
| RPM Range | 30-720 | 30-720 | 30-720 | 15-450 | 30-720 |
| Spindle Hollow | 65 MM | 65 MM | 90 MM | 103 MM | 103 MM |
| Metric Threads | 1-14 | 44940 | 44940 | 44940 | 44940 |
| With Worth Threads TPI | 2-30 | 10990 | 10990 | 10990 | 10990 |
| No of Feeds | 30 | 30 | 30 | 30 | 30 |
| Electic Motor RPM | 3*1440 | 3*1440 | 5*1440 | 5*1440 | 7.5*1440 |
