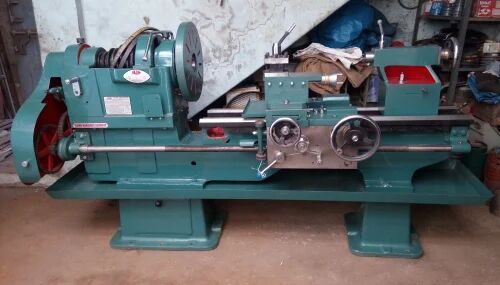

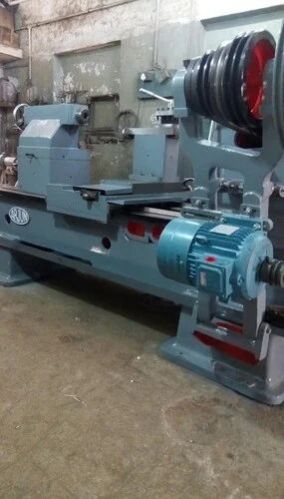

7 Feet Heavy Duty Lathe Machine, Machine Weight : 1250 Kg

₹ 21,900 / piece

Machine Weight1250 Kg
Height of Centre300mm
Lead Screw Diameter38.1 mm
Tail Stock Spindle Diameter56 mm
Supply TypeManufacturer
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Retailer

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Machine Weight1250 Kg
Height of Centre300mm
Spindle Bore80 mm
Bed Length7 Feet
Maximum Swing in Gap700 mm
Lead Screw Diameter38.1 mm
Tail Stock Spindle Taper BoreMT-4
Distance Between Centre1024 mm
Swing Over Bed560 Mm
Swing Over Cross Slide455 mm
Lead Screw Pitch4 T.P.I
Number of Spindle Speeds8
Range of Metric Thread1-6 mm
Range of Inch Thread1-24 T.P.I
Tail Stock Spindle Travel275 mm
Floor Space2150 x 950 mm
Tail Stock Spindle Diameter56 mm
Motor Power2HP
Cross Slide Travel275 Mm
Bed Width325 Mm
Bed Type2V & 2 Flat
Applicable IndustrySteel Rolling Mills, Paper Mills, Mining, Textile, Shipbuilding, Sugar Mills, Oil Industry

As an esteemed name in the relevant industry, we are manufacturing and supplying a commendable array of Extra Heavy Duty Lathe Machine. With the support of our skilled professionals, the offered machine is precisely manufactured with the optimum grade components and advanced technology. Our provided machine is highly appraised in the market for its long working life, minimum maintenance and superior performance. Apart from this, offered machine is rigorously tested against several quality parameters to ensure its quality. Features: Sturdy construction Smooth functioning Minimum maintenance
