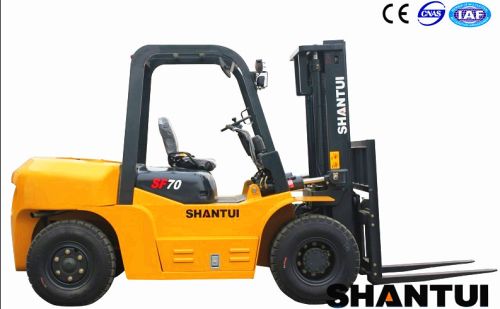

7 Ton Diesel Forklift

Shantui 7.0Ton container diesel forklift (SF70)equipment with Original Japanese ISUZU 6BG1 engine, hydraulic transmission,double oil pump,hydraulic assisted steering,front double tires.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard. Why choose us? 1.Best quality-Shantui has long history & One of China biggest forklift factory. 2.Advanced technology- Copperate with Japan Komatsu for over 20 years.  SF70  STANDARD    DIMENSIONS  General Model SF70 unit Load capacity 7000 Kg load center 600 mm Power type Diesel Dimensions Lift size 3000 mm Fork size 1220x175x50 mm Mast tilt angle 612 ° Front overhang 627 mm Overall dimensions Length to face of fork 4840 mm Overall width 1995 mm Overall height fork lowered 2500 mm Overhead guard height 2450 mm Turning radius 3450 mm Performance Travel speed(full loadno load) 2628 Kmh Lift speed with load 450 mmsec Max.gradeability 20 % Self weight 9400 Kg Wheel&tires Tires Front 8.5-15-14PR Rear 8.5-15-14PR Tread Front 1470 mm Rear 1700 mm Wheelbase 2250 mm Min.ground clearance(mast) 200 mm Drive units&control Engine Model CHAOCHAI6102BG PERKINS1104D Rated output 812500 832200 Kwrpm Rated torque 3531700 4181400 N·mrpm No.of cylinder 6 4 Bore×stroke 102×118 105×127 mm Displacement 5.795 4.4 L 3.Service-SHANTUI service everytime everywhere. .
