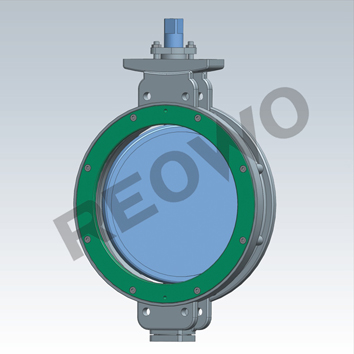

70eseries High-performance Butterfly Valve

We are offering 70eseries high-performance butterfly valve.
Outline
the 70e series high performance butterfly valve adopts the design of double-eccentric structure. The shaft carries out double deviation from the structural center of the body and makes the disc leave the sealing seat instantly when it is opened in conjunction with the arc sealing face design of the disc. So as to reduce the friction of the sealing face. The disc has good sealing performance during closing. In addition to realizing effective compensation for the seat seal, the central self-positioning sealing seat structure design and the unique seat compensation sealing design reduce the friction during opening and closing, greatly reduce the operating force of the valve and effectively enhance the control precision of the butterfly valve. The 70e series butterfly valve is featured by stable and reliable sealing performance, long service life, etc. It is suitable for control and shut-off applications of common corrosive gases and liquid media.
Actuator and auxiliary control device
•pneumatic
•electric
•pneumatic-hydraulic
•worm gear
application
•air separation, chemical industry, petroleum
•chemical fiber, electric power, metallurgy
•pharmacy, environmental protection
manufacturing range
•size range: dn"2"～48"
•pressure rating: 150～300lb
•connection type: wafer type, flange type
parameters of control valves
•trim features: double-eccentric structure, compensation type sealing seat, valve disc arc surface
•body type: straight-through type
•bonnet type: standard integral type
•flow characteristic: approximately equal percentage
•shut-off class: asme b16.104 vi (standard seat), asme b16.104 iv (metal seat)
•pipe connection type: wafer type, flange type
•applicable temperature range: -45℃~250℃
•actuator type: pneumatic piston actuator, electric actuator.
