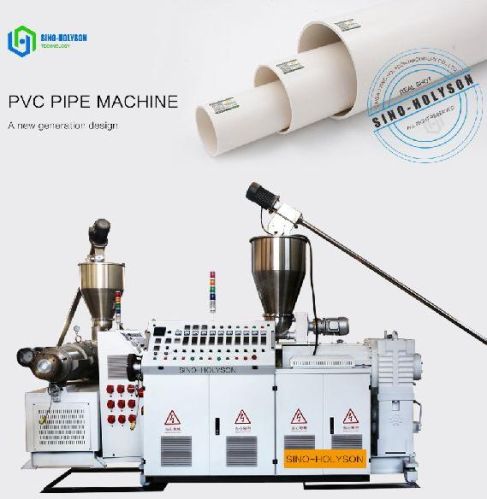

Semi Automatic 75-160mm PVC Pipe Making Machine

plastic pvc pipe making machine is mainly used in the production of kinds of pvc pipes.

pvc pipe is interested by most customer in past decade of years. it is estimated  that pvc pipe making machine will still have a potential huge market in plastic machinery in the following years.

pvc pipe making machine is equipped with conical twin screw extruder or parallel twin screw extruder, adopt optimized spider die with chrome-plating, ensure the melt plasticization homogenous and distribution uniform. equipped with stainless steel vacuum calibration sleeve with water lubrication ring, twin-chamber vacuum tank with spraying cooling and semicircular nylon support, to ensure fast calibration, increase the production capacity and lower the operation.

these designs are especially good for big diameter pipe production and high speed production.

all of vacuum tank and water cooling tank is made from stainless steel, dual water supply pipe line with filtration system, water level and temperature control system and optimized positioning of the bayonet-type spray nozzles.

the twin or multi caterpillar haul-off unit is equipped with high quality rubber block, accuracy driving and control system ensure the speed stable and running reliable.
accurate non-scrap cutting machine (less than 110mm) and planetary cutting machine ensure the cutting section smooth and uniform.

it can also make the socket online if equipped with automatic belling machine. and the line can be equipped with comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high grade tube.
