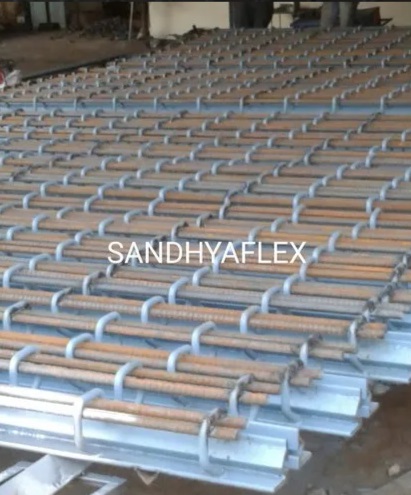

Aliminum 75mm Strip Seal Expansion Joint, Color : Blue, Ash

The Sandhyaflex M-Type Strip Seal Expansion Joint is a specialized expansion joint system used in bridges, highways, and large infrastructure projects to accommodate movements caused by temperature changes, traffic loads, and seismic activity. The M-Type design is specifically crafted for applications requiring greater movement capacity and durability.

• Design:

  • The M-Type Strip Seal features an "M" shaped configuration that provides superior flexibility and movement absorption.
  • Designed to handle both longitudinal and transverse movements.

• Material:

  • Seal Material: High-quality elastomeric rubber, ensuring excellent resilience and weather resistance.
  • Steel Edge Beams: Made of corrosion-resistant steel to offer strength and longevity.
  • Waterproofing: Ensures water-tight sealing to prevent structural damage.

• Movement Capability:

  • Typically accommodates movements ranging from 80 mm to 200 mm.

• Load Bearing Capacity:

  • Can handle heavy vehicular loads, making it ideal for high-traffic bridges and highways.

• Bridges and Flyovers: To absorb expansions and contractions due to temperature fluctuations.
• Highways and Roadways: Ensures smooth vehicle movement while maintaining structural integrity.
• Parking Structures: Useful in large concrete or steel structures with expansion joints.
• Seismic Zones: Provides flexibility to accommodate seismic movements.

• Material: Elastomeric rubber and steel.
• Movement Range: Up to 200 mm.
• Temperature Range: Can withstand temperatures from -40°C to +70°C.
• Seal Width: Customizable based on the application requirements.
• Load Capacity: Suitable for both light and heavy-duty traffic.

• Provides long-term durability with minimal maintenance.
• Prevents water and debris infiltration.
• Reduces noise and vibration caused by vehicle movement.
• Easy to install and replace.
• Effectively accommodates structural movements without compromising safety.

If you need further information regarding installation procedures, technical drawings, or pricing, feel free to ask!
