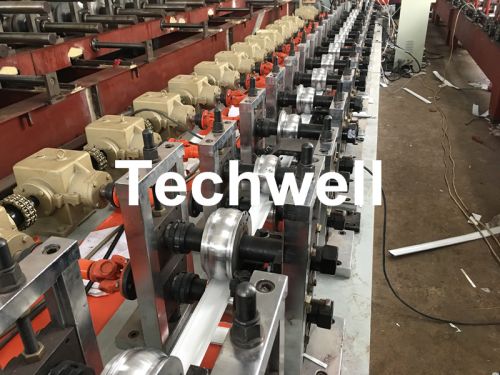

77mm PU Foam Roller Shutter Door Slat Roll Forming Machine

39 42 45 55 65 77mm pu foam roller shutter door slat roll forming machine with servo flying-saw cutting
main specifications
sheet material: aluminum
sheet thickness: 0.2-0.35mm
covered width: 39mm 42mm 45mm 55mm 65mm 77mm
decoiler: manual decoiler
capacity of decoiler: 2 ton
forming speed: 0-15mmin
drive type: gearbox drive
forming station: approx. 37 stations
shaft diameter: 40mm or 50mm
shaft material: high grade 45# steel with heat treatment
main power: 7.5kw
punching: pneumatic type punching
cutting type: servo tracking flying-saw cutting
cutting power: 2.2kw
servo motor power: 1.5kw
pu foaming machine: with two group " iso poly "
main machine dimension: approx. 24m * 1.2m * 1.2m ( l * w * h )
