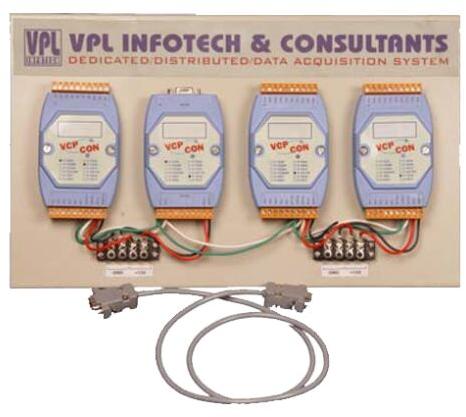

8/16/24/32 Channel Data Acquisition System (VPL-DAS)

Listing ID #4296847

  • Sampling Rate10 samples/sec
  • Accuracy±0.2%
  • Speed300 ~ 115,200 bps
  • OutputRS-485 protocol
  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 18 Years
  • Nature of Business Manufacturer
  • GST No. 07AACFV6024H1Z9

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Voltage overload protection ±35V
  • Input RS-232 protocol
  • Speed 300 ~ 115,200 bps
  • Sampling Rate 10 samples/sec
  • Digital output channels 8 Open collector to 30V, 30mA max. load Power dissipation: 300mW
  • NMR @ 50/60Hz 100dB min
  • Bandwidth 15.7Hz
  • Span drift 25ppm/°C
  • Communication Interface RS485
  • CMR @ 50/60Hz 150dB min
  • Isolation 3000V DC
  • Thermocouple type J, K, T, E, R, S, B, N, C
  • Input impedance 20Mohm
  • Analog Input Channels 8~32 differential
  • Level TTL Logic Level 0: +1V max. Logic Level 1: 3.5V~+30V
  • Digital input channels 7
  • Analog Input type mV, V, mA
  • Voltage range ±15mV, ±50mV, ±100mV, ±500mV, ±1V, ±2.5V
  • Output RS-485 protocol
  • Current range ±20mA
  • Zero drift 0.5μV/°C
  • Power requirement +10 to +30V DC
  • Accuracy ±0.2%
  • Power consumption 1.0W
  • Input frequency 100Hz

The VPL-DAS is a powerful Data Acquisition System specially designed for VPL’s series of Data Acquisition Modules. The System consists the following modules:

8~32-Channel Thermocouple Input (I-7018)



  • 256 modules in one RS-485 network without Repeater
  • 3000 V isolation
  • Multiple Baud Rate
  • Multiple Data Format
  • “Self Tuner” inside





Digital I/O Module (I-7050)



  • Safe value (when Host fail or communication fail)
  • Power on preset value
  • Dual Watchdog Timer
