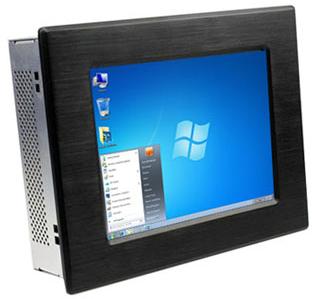

8.4 Inch All In One Touch Panel PC

8.4" touch panel PC, industrial all in one PC,
We also provides 8~19 industrial all in one panel PC with touch screen, the Model No are ipc-08d, ipc-10d, ipc-12d, ipc-15d, ipc-17d, ipc-19d
Features
8.4" SVGA TFT LCD panel support 800* 600 pixels
Intel atom d525 ( dual-core 1.8GHz processor ) CPU with 667 MHz fsb
Front 6mm aluminum bezel with IP65 compliant
Front hardness glass protect screen ( touch option )
2* COM, 1* lpt, 2 * PS/2, 1 * VGA, 4 * USB, 2* glan, 1* audio, 1* mic
1* mini pcie slot
Wireless LAN with antenna (option)
Panel ( flush ) mount with clips
Standard vesa 75mm support stand, wall mount and swing arm
Specifications
System
Processor intel atom d525 ( dual-core 1.8GHz processor ) CPU
With 667 MHz fsb
Chipset intel nm10
Memory DDR3 2g RAM
Dispay intel gma3150 chipset
Storage 2.5" HDD SATA 320g
Ethernet 2 x 100/1000 LAN ports
VGA port 1 x VGA connector
Kb & mouse 1 x PS2 port
Audio realtek ® Alc662, 5.1 channel surround audio
USB port 4 x USB 2.0
Serial port 2 x RS-232, COM2, RS232/RS422/RS485
Power switch 1 x power switch
Expansive slot 1 x mini pcie
Power supply 1 x DC input connector
Construction front aluminum bezel and steel chassis
LCD panel
Display type 8.4 SVGA TFT LCD
Resolution 800 x 600
Max. Color 16.2m
Luminance 250 CD/m2
View angle 150° (h), 135° (v)
Pixel pitch 0.297 x 0.297 mm
Contrast ratio 500: 1
Response time 8 ms
LCD mtbf 50, 000hrs
Mechanical and environmental
Dimensions (wxhxd) 248.8x196.8x70 mm
Weight net: 4.5kg, gross: 6.0 kg
Operating temperature 32 ° F~113 ° F (0 ° C to 45° C)
Storage temperature -4 ° F~140 ° F (-20 ° C to 60 ° C)
Storage humidity 10% to 90% non-condensing
Anti-vibration 17Hz-500 Hz 1g ptp
Anti-shock 1g / peak( 11m sec)
Approvals CE/RoHS
Available options
Touch screen resistive type touch screen
Wireless LAN meet IEEE802.11b/g standard
DC power input wide range 8~28V DC input
Power specifications
Input 100~240vac, 50/60Hz
Output DC12V@ 10A / 120W, external AC adapter with lockable connector
Ordering informations
IPC-08D
8.4” Industrial All in one panel PC with Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD
IPC-08DT
8.4” Industrial All in one touch panel PC support Intel Atom D525 Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD, with Resistive Touch Screen
