8 Channel Battery Analyzer

8 Channel Battery Analyzer (0.005 -1 mA, upto 5V) w with Software TCH- BST

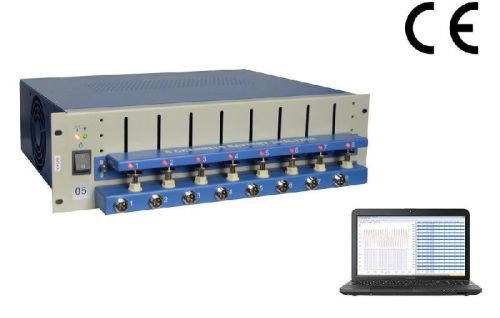

TCH-BST8-WA is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 0.005 mA to 1 mA, up to 5V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc. Brand new laptop with MS Window 10, MS Excel 2013 30 days free trial and latest version testing software are installed and calibrated for immediate use (Up to 20 sets of analyzers can be simultaneously controlled by one PC).
Specification:
Electricity requirement
110V AC or 220V AC selectable for universal use
Power Consumption
30W
Current
Range: 0.005 mA - 1.0 mA
Accuracy: ±(0.05% of reading + 0.1% of range)
Voltage
Range: 0.5 - 5V programmable
Accuracy: ±(0.05% of reading + 0.1% of range)
Data register conditions
Time interval: 1 - 900s
Max. measurement cycles
9999 cycles
Product Dimensions
245mm(L) x 197mm(W) x 60mm(H)
Channels
Eight independent programmable channels
Each channel can set different working modes and functions independently
Battery Holders
Two types of battery holders are included in the BST8-WA Standard package:
8 alligator clips with cable for universal connecting (especially for pouch cell, pls click the picture 1-2 below )
8 spring load holders with adjustable height for measuring cylinder or coin cell up to 70mm(H) (pls click picture below 3-4 to enlarge)
Optional holder: 8-Channel coin cell testing board for measuring coin cells easily
