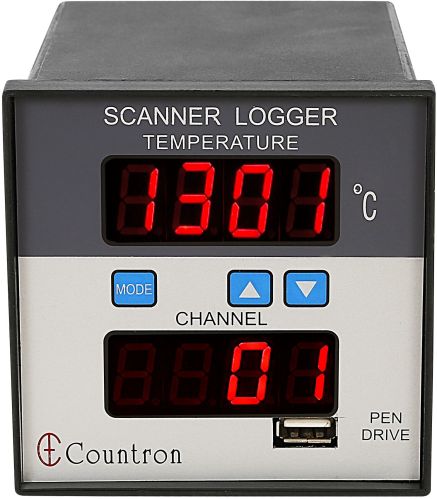

Countronics 8 Channel Temperature Scanner Logger for Industrial

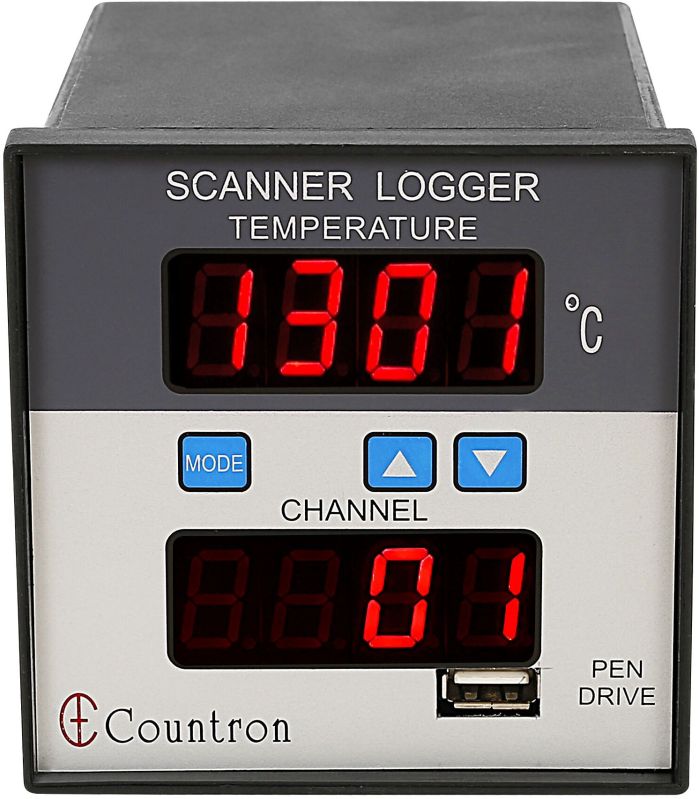

8 CHANNEL UNIVERSAL TEMPERATURE SCANNER LOGGER
CT708

Features:

 Data saved directly on USB Pen drive in an MS Excel compatible file

 Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.

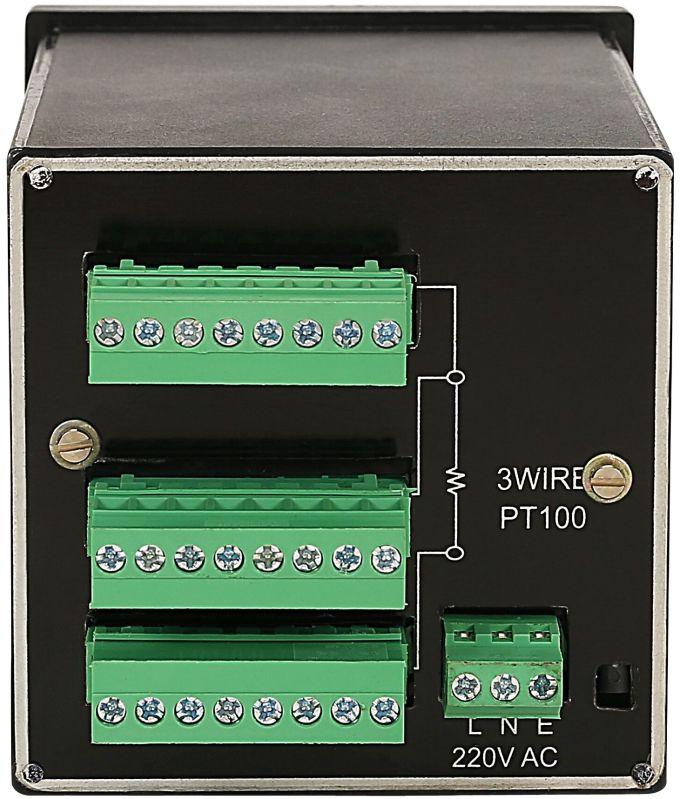

 Auto cold junction compensation for thermocouples and 3 wire input for PT100

 Number of usable channels selectable.

 Auto/Manual mode of scanning selectable

 Rate of logging settable by user in Mins:Secs

 Digital offset user settable for individual channels

 Internal Real Time Clock with battery backup for saving values along with Date and Time

 No need of any complicated or additional software for managing data

 Saving data on Pen drive allows a very large amount of storage space at very low cost.

Specifications

 Display : 0.56” Red LED display for Channel Number

                 0.56” Red LED display for Temperature

 Sensor : J/K/R Thermocouples and 3 wire PT100 sensor user selectable

 Range : J-T/C : 0 to 750 ̊C K-T/C : 0 to 1250 ̊C R-T/C : 0 to 1700 ̊C

                PT100: -100.0 to +600.0 ̊C

 Resolution : 1 ̊C for thermocouples and 0.1 ̊C for PT100

 Channels : Maximum 8

 Scanning Rate: User settable from 1-99seconds

 Resolution : 1 ̊C for Temperature

 Digital Offset : User settable individually for each channel

 Logging Rate : 1 second to 99Mins59seconds

 Data Logging : Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels

 Real Time Clock: Adjustable Calendar (Month/Date) and Time (Hrs:Mins)

 Accuracy : ±1 ̊C ± 1 Least Significant Digit for Thermocouple

                    ±0.1 ̊C ± 1 Least Significant Digit for PT100

 Power Supply : 230V AC ± 15% at 50/60Hz

 Front Facia : 96mm x 96mm
