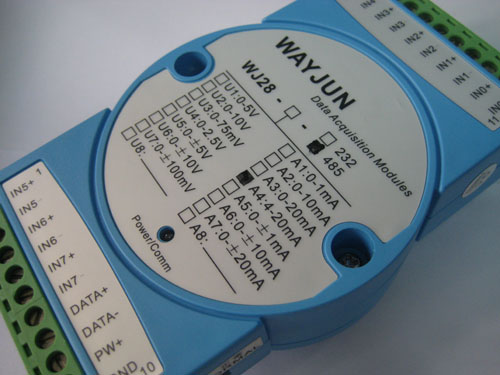

8 Inputs Channel Current/ Voltage Signal To Rs485 Converter

We are offering 8 inputs channel current/ voltage signal to rs485 converter.
Features:
>> eight analog signal acquisition, isolated converter rs-485232 output
>> 24-bit ad converter, accuracy>0.05%
>> 4-20ma0-20ma current signal or 0-5v0-10v voltage signal input
>> rs-485232 interface can be programmed calibration module accuracy
>> signal input output:3000vdc isolation
>> wide supply range: 8 ~ 32vdc
>> high reliability, easy programming, easy to apply
>> standard din35 rail mounting
>> user-programmable settings module address, baud rate, etc.
>> support the modbus rtu protocol
>> low cost, small size modular design
typical applications:
>> signal measurement, monitoring and control
>> rs-485 remote I o, data acquisition
>> application of intelligent building control, security engineering
>> industrial automation control system, the rs-232485 bus
>> industrial signal isolation and long-term transmission
>> equipment operation and monitoring
>> measurement of sensor signals
>> the industrial data acquisition and recording
>> medical, industrial and product development
samples:
part no.:wj28-a4-485 means 8 channels 4-20ma input,ouput is rs485 interface
part no.:wj28-u1-232 means 8 channels 0-5v input,output is rs232 interface
part no.:wj28-u2-485 means 8 channels 0-10v input,output is rs485 interface
more details,please check our website,you can order online by paypal.
