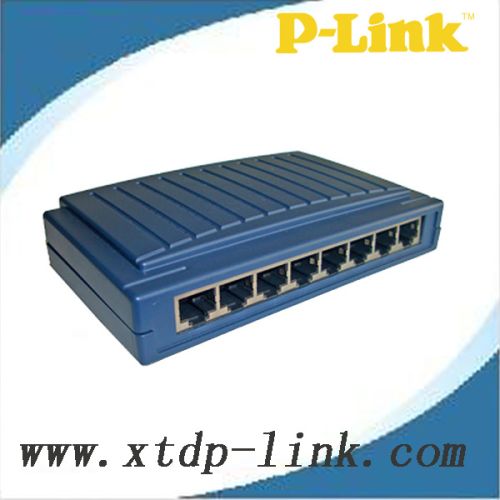

P-Link 8 Port 10/100M ETHERNET SWITCH

Description:
PL-ES108D-C1, MINI Fast Ethernet Switch, MINI and exquisite, is specially designed for SOHO and small enterprise users .With easy installation, high forwarding rate and connection mode of auto-negotiation port, it supports Auto MDI/MDIX, MAC address auto learning/aging and integrates 1K MAC table.
Features:
 Complies with IEEE802.3, IEEE802.3u standards.
 8 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
 Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode.
 Supports MAC address auto-learning and auto-aging.
 LED indicators for monitoring power, link, activity.
 Integrates 1K MAC address table
 Plastic case, desktop
 External Power Adapter supply.
Specification:
Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Ports 8 10/100Mbps Auto-Negotiation ports
Network Media(Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)， EIA/TIA-568 100Ù STP (maximum 100m)，
100Base-Tx: UTP category 5, 5e cable (maximum 100m)，
EIA/TIA-568 100Ù STP (maximum 100m)
Swiching capacity 1.6G
LED Indicators 100Mbps Link/Act, Other Power
Transfer Method Store-and-Forward
MAC Address Learning Automatically learning, automatically Update
Frame Filtering and Forward Rate 10Mbps: 14880pps,
100Mbps: 148800pps
Environment Operating Temperature: 0 C~40 C (32 F~104 F)，
Storage Temperature: -40 C~70 C (-40 F~158 F)，
Operating Humidity: 10%~90% non-condensing，
Storage humidity: 5%~90% non-condensing
Package:
MEAS: 50X30.5X37 cm
N.W.15KG
G.W.: 16KG
Q'TY:50PCS/carton
