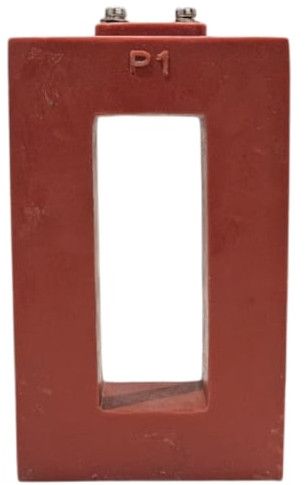

800-1600 A Resin Cast Rectangular Current Transformer

Get Latest Price

MOQ20 Piece
Frequency50 Hz ± 5%
StandardIS: 2705 (Part I–IV)
TypeRectangular Resin Cast Current Transformer (CT)
System Voltage11 kV / 1.1 kV (as per site)
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Powertrac Meters and Transformers

Mansarovar, Jaipur, Rajasthan

View Number

Member Since 8 Years
Nature of Business Manufacturer
GST No. 08AASHP7571F1ZJ

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Country of OriginIndia
TypeRectangular Resin Cast Current Transformer (CT)
StandardIS: 2705 (Part I–IV)
System Voltage11 kV / 1.1 kV (as per site)
Frequency50 Hz ± 5%
MarkingsAs per IS 2705 (Ratio, VA, Class, Serial No., Year)
Burden15 VA
Short Time CurrentAs per IS: 2705 (e.g., 25 × rated current for 1 sec)
Instrument Security Factor (ISF)≤ 5
Overall Dimensions (OD)170 × 100 mm width 40mm
Window Dimensions (ID)105 × 40 mm width 40mm
InsulationClass E / Class B
Service ConditionsIndoor, tropical conditions
MountingHorizontal / Vertical (as per design)
TerminalsScrew-type, tinned copper, located on smaller side
Continuous Thermal Current1.2 × rated current
ConstructionResin Cast, epoxy encapsulated, flame-retardant
Accuracy ClassClass 1.0
Ratio800/5 A, 1000/5 A, 1250/5 A, 1600/5 A
Ambient Temperature–10°C to +55°C
Routine & Type TestsAs per IS 2705 (Polarity, Ratio, Burden, Accuracy, Dielectric, etc.)

We are a leading Manufacturer, Exporter, Supplier, and Trader of high-quality Rectangular Resin Cast Current Transformer (CT) originating from India. Our product complies with the IS: 2705 (Part I–IV) standard and is designed for system voltages of 11 kV / 1.1 kV. With a ratio of 800/5 A and an accuracy class of 1.0, this CT offers precise measurements. It has a burden of 15 VA and features screw-type terminals for easy installation. The window dimensions are 105 × 40 mm, while the overall dimensions are 170 × 100 mm. Trust our reliable and efficient current transformer for your electrical applications.
