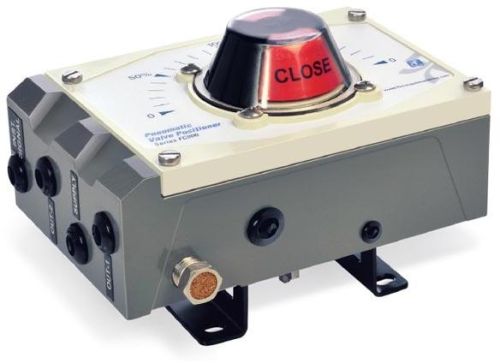

800 FC Series Valve Positioner

800 FC Series Valve positioner which utilizes a unique spool valve, is a cam characterized, force balanced instrument that is simple, rugged, and very user friendly for calibration and maintenance. The NEMA 4 X housing, is cast aluminum, with an electro-statically applied polyester coating for excellent resistance against a wide range of environmental conditions. This unit operates on a standard 3—15 psi instrument signal (12 psi span-optional 24 psi}, and can provide years of trouble free service in many tough applications. The gauge block is cast into the unit and therefore standard. The large indicator has scaling to operate in both direct and reverse directions. Integrated Characteristic :

• Suitable for Linear/Rotary quarter turn actuator.
• Extremely vibration resistance design.
• Corrosion reisistance aluminum diecast and powder coated.
• Bolts on visual position indicator is adjustable and waterproof.
• Different type of spindles (Drive) and cams for wide range of application and actuators.
• Captive cover bolts. No worry to loose bolts while cover opens.
• Easy mounting.
• Optional position transmitter 4-20mA DC.
