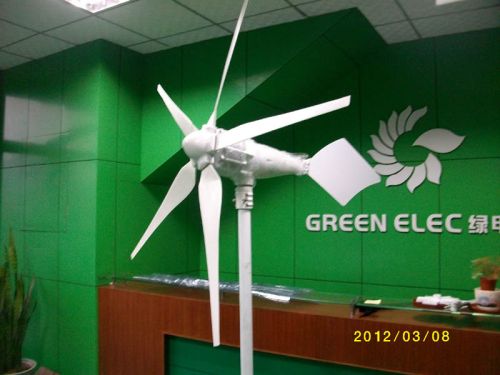

Contact SupplierModel 800W
Name Dolphin
Rated power 800W
Rated DC voltage DC 24V
Rated current 33A
Rated speed 620r/m
Max power 900W
Number of blade 5 pcs
Starting wind speed 3m/s
Cut-in wind speed 3.5m/s
Cut-out wind speed 15m/s
Security wind speed 45m/s
Rated wind speed 12m/s
Engine Three-phase permanent magnel generator
Rotor diameter 1870mm
Blade material Carbon fiber reinforced plastics
Output line anti-winding device Over all three-phase commutator
Over-speed wind protection Tip stall protection + turned protection + Electromagnetic brake
Life span 15 years
Equipment surface protection Aluminum oxide + plastic coating
Working temperature -45°C-70°C
N.W. 22.53kg
Packing material Carton box and foam material
packing dimension 830*530*460mm
G.W. 25kg.
