Contact SupplierWe are offering gigabit poe splitter.
Features
* ieee802.3afat compliance
* 5v, 9v, 12v, 18v output adjustable by dip
* maximum output power up to 25w
* 101001000mbps duplex mode support
* additional +-15kv of ethernet isolation for esdsurge protection
* support mid-span(one pair) and end span(second pair) pse
* plug-and-play

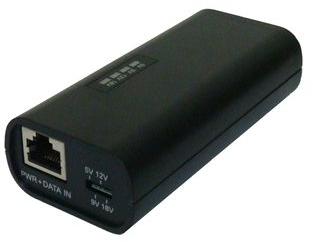

pd591218g is the most comprehensive splitter compliant with ieee 802.3afat poe standard in the market. It's well-cover output voltage 5v, 9v, 12v,18v range can connect with 95% of market pds (power device) including wireless ap, camera, voip phone etc. It also encloses φ2.1 dc jack to suit with most pds power diameter.
Pd591218g splits data and power signal over same ethernet utp cable and transfer input 48v (poe standard) to 4 kinds voltages to meet with each pd needs. The inside poe chip can correspond to poe impedance signal sent by poe injector or pse (power source) to handshake with poe standard first and then to deliver 48v power to drive pd, in which it prevents the risk of burning down the pd.
