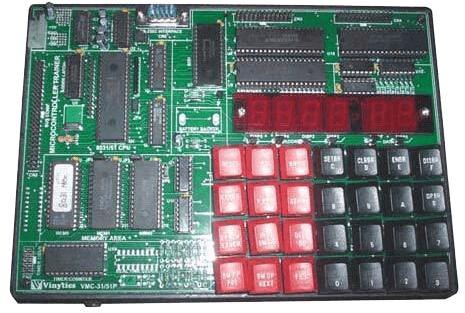

8031/8051/8751 Microcontroller Trainer (VPL-31/51)

VPL-31/518031/51 Microcontrollar with LED Display
VPL-31/51LCDVPL-31/51 with LCD display & ASCII Keyboard
VPL-31/51LCDADVPL-31/51LCD with ADC & DAC
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Our Microcontroller Trainer Kit VPL-31/51 is based on 8031/8051/8751 Micro-controller included with LED Display, USB Interface & Inbuilt Power Supply. SPECIFICATIONS FOR VPL-31/51: –....

View More Details

Send Enquiry

Company Information

VPL Infotech & Consultants

Preet Vihar, Delhi

4.6/5

(28)

View Number

Member Since 19 Years
Nature of Business Manufacturer
GST No. 07AACFV6024H1Z9

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Our Microcontroller Trainer Kit VPL-31/51 is based on 8031/8051/8751 Micro-controller included with LED Display, USB Interface & Inbuilt Power Supply.

SPECIFICATIONS FOR VPL-31/51:

– Based on 8031/8051/8751 operating at 10/12 MHz.
– On board 8K RAM.
– Battery backup for RAM area.
– 8/16K bytes of EPROM with powerful monitor program.
– Total memory expandable upto 128K Bytes.
– 48 I/O lines using 2 nos. of 8255.
– Two External interrupts INT0 & INT1.
– Hexadecimal Keyboard and Six Seven Segment displays.
– RS-232C interface using 8251.
– USB interface to connect kit to computer (optional)
– Auxiliary RS-232C using serial pins of 80C31.
– All data, address and control signals (TTL compatible) available at FRC connector.
– Powerful software commands like INSERT, DELETE, BLOCK MOVE, SET/CLEAR BREAK POINT, SINGLE STEP, EXAMINE THROUGH REGISTER, EXECUTE, EXAMINE, MODIFY, PROGRAM/DATA/INTERNAL MEMORY etc.
– Uploading/Downloading facility from PC in Intel Hex format.
– Enclosed in attractive ABS plastic cabinet with cover.
– In-built Power Supply.
– User’s Manual, Cables & Connectors.
