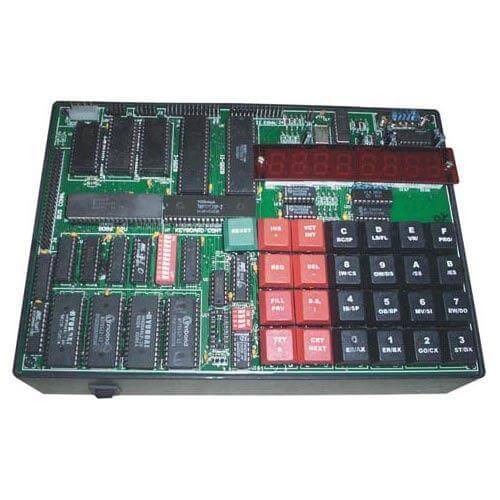

8086/88 Microprocessor Trainer (VPL-8603U

8086/88 Microprocessor Trainer with LED Display, USB interface, EPROM Programmer, AC, DAC & Power Supply. There are two models VPL-8603U and VPL8603ADU with few additional features

Features:

• – Hassle free performance
• – Robust construction
• – Long service life

Technical specifications for VPL-8603U:

• – Based on Intel’s 8086/8088 CPU operating at 2.5/5MHz
• – 16K bytes of RAM available to the user using 6264
• – 16K bytes of EPROM loaded with powerful monitor program (2764/27128)
• – Total on board memory capacity of 128KB of RAM & 128KB of EPROM
• – Battery backup provided for RAM area
• – 48 I/O lines through 2 nos. of 8255
• – 16 bit Timer/Counter through 8253
• – RS-232C for CRT Terminal through 8251 Baud rate selection through DIP switch from 110-19,200 baud
• – USB Interface to connect kit to computer (OPTIONAL)
• – V-USB Terminal Software to operate kit from USB Port to execute all commands like Examine Mem, Execute, Assembler & Dissembler etc
• – Provision for EPROM Programmer for 2732/2764/27256 with 28 pin ZIF with facility to Program, Verify, List & Blank Check for Even, Odd & Continuous bytes
• – 25/28 keys hexadecimal keyboard & eight seven segment display.
• – Resident Monitor with two modes of operation:
• – Keyboard mode & Serial mode
• – Powerful software commands like Go, Examine/Modify Registers, Single stepping, Blockmove, Fill, Insert, Delete, Input/Output Byte & Word
• – Facility for uploading/downloading of files from/to PC
• – All Address, Data and Control Signals, are buffered and available at the FRC connector
• – Enclosed in an attractive ABS plastic cabinet with cover
• – In-built Power Supply
• – User’s Manual

Technical specifications for VPL-8603ADU:

All Specifications are same as VPL-8603U above with following additional features:

• – On board Analog to Digital Converter
• – On board Digital to Analog Converter
• – EPROM Programmer
• – Onboard sockets provided to facilitate the use of 8089 I/O processor & 8087 Numeric Data Processor (Optional)
