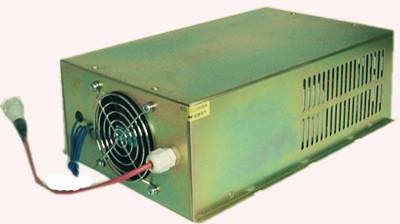

We are offering 80w co2 laser power supply for co2 tube.
specification:
input ac voltage ac220v or ac110v
input dc voltage dc 300v or dc150v
input ac frequency 47-440hz
max. Output voltage 45kv
max. Output current 30ma(depends on laser tube)
efficiency 91%
over current protection 130% of max. Current
open circuit protection yes (for short time)
cooling fan cooling
voltage range of high level control not less than3v
voltage range of low level control not more than0.8v
working temperature -30 - +65 degree centigrade
humidity 20-85%rh(no dew)
withstand
voltage input-output ac1500vminnot more than10ma
input-shell ac1500vminnot more than10ma
output-shell connected
insulation not less than 50mohm dc500
leakage current not less than ac220 not more than 0.5 ac110
shock resistance amplitude: 0.5mm, frequency:10-55hz, 3d discretion:2 hours
mtbf not less than30,000hours
full load 60 degree centigrade test 12hours
7 seconds starts top test 500 times
dimension270mmx163mmx80mm
