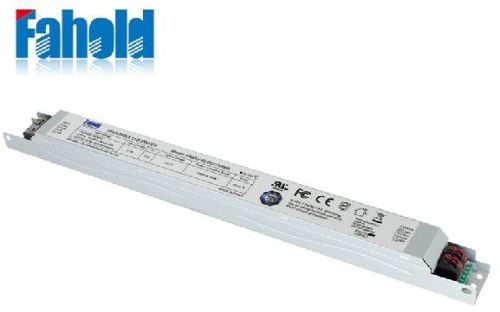

80W Linear LED Driver Dimmable LED Driver

Product description: • Dimmable Led Driver 80W • Output voltage 40 V • Max. output power 80 W • Dimmable via PWM0-10VRXDali LED dimmers • Nominal life-time up to 50,000 h • 5-year guarantee            Typical application • Cove lighting, facade accent lighting, ceiling integration,linear lighting. Technical details • 40 V, 80 W • Very good THD performance in wide load range < 5 % • Ripple and Noise  0.18V p-p • Small cross section • Push terminal for simple wiring • Dimming Range 0-100% Wiring guidelines • The cables should be run separately from the mains connections and mains cables to ensure good EMC conditions. • The LED wiring should be kept as short as possible to ensure good EMC. The max. secondary cable length is 2 m (4 m circuit). • The LED Driver has no inverse-polarity protection on the secondary side. Wrong polarity can damage LED modules with no inverse-polarity protection. • Wrong wiring of the LED Driver can lead to malfunction or irreparable damage.  Earth connection The earth connection is conducted as protection earth (PE). The LED Driver can be earthed via metal housing. If the LED Driver will be earthed,protection earth (PE) has to be used. There is no earth connection required for the functionality of the LED Driver. Earth connection is recommended to improve following behaviour: • Electromagnetic interferences (EMI) •
