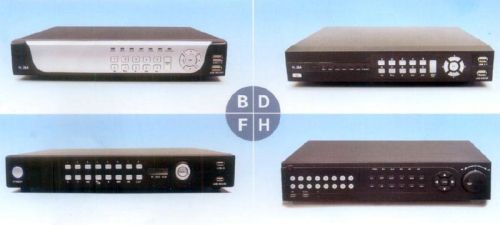

85 Series Standalone DVR System

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

4/8/16 channel 85 Series Standalone DVR System, offered by us, has record resolution up to D1, supports HD1, CIF, with triple encoding performance that is suitable for the network transfer,....

View More Details

Send Enquiry

Company Information

Net Eye Security Systems.

Dilshad Garden, Delhi

View Number

Member Since 14 Years
Nature of Business Retailer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

4/8/16 channel 85 Series Standalone DVR System, offered by us, has record resolution up to D1, supports HD1, CIF, with triple encoding performance that is suitable for the network transfer, cell-phone monitoring. Used in factories, shops, homes, etc., our 85 Series Standalone DVR System supports user-friendly GUI and provides high-definition image and reliable performance. Product Features

The latest H.264 compression
Supports complex streaming encode, recording, playback, net transfer, backup, wireless monitor and DVR, running simultaneously
Supports VGAand 1channel BNCvideo output
High definition VGA output up to 1440X900@60fps
Supports two-way radio
Supports digital zoom function in playback and live view
Supports different PTZ protocols, preset tour function etc
Supports 1-2 SATAHDD(depend on models)
Supports 4/8/16ch playback simultaneously
Supports Multi-Client software for DVRgroups management
Supports Mobile phone monitoring (Iphone/Blackberry/Android/Windows Mobile/Symbian as available)
Supports HDMIoutput (8516)
Supports fullSDKfiles

Models Available

8504B
8504D
8504K
8508B
8508D
8508K
8508E
8516E
8516F
8516T
8516H

Technical Specifications

Models		8504	8508	8516
System	User Interface	Graphic User interface(OSD Menu)
	Security	User password, administrator different authority
Video	Video in	4 channels	8 channels	16 channels
	Video out	1 composite video output	1 composite video output 1 video rotation output 1 HDMI output(Optional)
	Display	1/4 optional	1/4/9 optional	1/4/9/16 optional
	Video standard	PAL 25f/s CCIR625;NTSC 30 f/s CCIR525
	Loop out	N/A	N/A	Support
Audio	Audio in/out	4 in, 1 out	8 in, 1 out	16 in, 1 out, two-way radio
	Audio compress	ADPCM
Image & storage	Video compress	H.264
	Image quality	CIF/HD1/D1 (Optional)
	Resolution	4 D1 record & 4CH playback	8 CIFrecord&8CHplayback 8 H01 record& 1CHplayback 201 +6CIFrecord & 1CHplayback	16 CIF record & 16CH playback 16 HD1 record & 1CH playback 4 D1 + 12 CIF record & 1CH playback
	Video Bit Rate	CIF: 384-768 Kbps (Optional
	HD1: 512-1024 Kbps(Optional)
	D1: 896-1280 Kbps(Optional)
	Audio Bit Rate	32Kbps
	Storage	Support 1~4 SATA HDD
Alarm	Alarm in	4 Alarm in,	8 Alarm in,	16 Alarm in
	Alarm out	1 out(optional)	1 out(optional)	2out(optional)
COM	Serial	RS485
	Lan	RJ45, 1OM/100M		RJ45, 1000M
VGA	VGA output	800x600,1024x768,1280x1024,1366x768,1440x900
Operation temperature		-10 ^oC - 60 ^oC
Operation humidity		10% - 90%
Power input		DC: 12V@3A	DC: 12V@5A
Power consumption		7W(without HDD & other)	15 W(without HOD & other)
Dimension (mm)		300m m(L)x240 mm(W)x60m m(H)	405mm(L)x312mm(W)x64mm(H)
Weights		2.5KG	4KG
