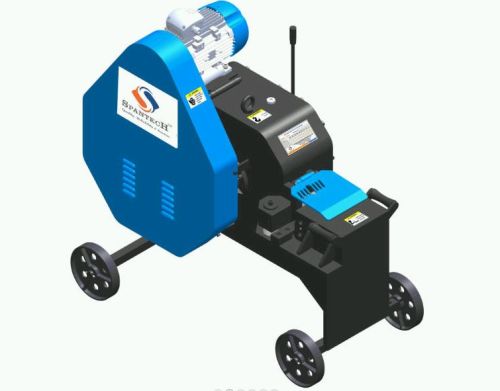

SC-52 4th Generation Series Bar Cutting Machine

Listing ID #3791815

Get Latest Price

ConditionNew
Weight870kg
Use forBar Cutting
Dimension1730*930*1450mm
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Details :

Additional Safety for Motor
Lower Power Consumption
Longer Life of Machine
Lower Frequency of Electrical Breakdown
Increased Life of Blades
Lower Oil Consumption
Ease of Operation

Features :

Our bar cutting machines are design by adheres European safety standards.
Each part in this cutting machine is designed with advance software with a goal to make the machine rugged, stronger & maintenance free.
Bar cutting machines are specially designed with powder coated body parts for longer life and protection against rust.
This series is designed higher factory of safety for increase the life of machine up to 10 years.
Reducing speed and improving the life of blades vastly, we use double stage of helical gearbox design.
The cutting blades, made from special hardened steel, are design to cut small and big diameter steel rods.
In this series machines you can use four edge of cutting blades.
Minimum vibration and less noise while cutting bars. The machine is supplied with dynamically balanced flywheel. This ensures long life of machine’s moving parts.
This machine is provided with wheels for easy movement at site.
Purpose of saving money and making it very environment friendly, we design SpanTech series with significantly reduced oil consumption.

Technical Specification

Model	Stroke per min.	Ø Max. 60 Kg./mm²	No. of Bars	Motor Kw (HP)	Dimension Size (mm)	Weight (Kg.)
SC 52	59	Ø36 Ø22 Ø16	1 2 3	3.7 (5)	745 x 1180 x 1015(h)	580
