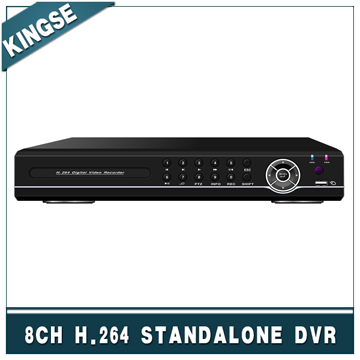

8CH USB MINI DVR

We offer usb mini dvr.
Model KS-7008
Video Compression Format H.264
Video System NTSC / PAL
Video Input / Output 8CH Input, 2CH Output (BNC,VGA)
Audio Input / Output 8CH Input,1CH Output (RCA)
Display Resolution NTSC: 720 x 480 / PAL: 720 x 576
Frame Rate NTSC: 240fps / PAL:200fps
Record Resolution NTSC: CIF(352x240) / HD1(704x240) / D1(704x480)
PAL: CIF(352x288) / HD1(704x288) / D1(704x576)
Frame Rate NTSC:60fps-D1 / 240fps-HD1
PAL: 50fps-D1 / 200fps-HD1
Image Quality Setting Best,Better,Good,Medium,Normal and Bad
Hard Disk Storage Max 1 x 2048MB SATA HDD
Multiplex Operation Live display,Record,Playback,Backup,Network Transmit,Mobile View
Recording Mode Manual,Timing,Motion Detection,Alarm
Playback Mode Slow Speed,Rapid Speed,Manual,Single-fame playing modes
Support positioning time by dragging the slider bar
Backup Device USB,USB Movable HDD,Network,USB DVD -RW
Pre-alarm Recording About 10 seconds before alarm
Network Protocol TCP/IP,PPOE,DNNS,FTP,NTP and UPNP
Network Function Support max 10 users simultaneously for remote view via IE browser
CMS software YES
Mobile View YES
Electronic zoom YES
Log record function YES
Image Tour YES
IR Remote control /USB Mouse YES
Video Loss Detection YES
Video Adjustable Hue,Saturation,Contrast,Brightness
PTZ Control YES
Password Protection YES
Power-down recovery function YES
Power Source DC 12V
Size(mm) 248mm*330mm*64mm
Weight with Packing 3.5KG
