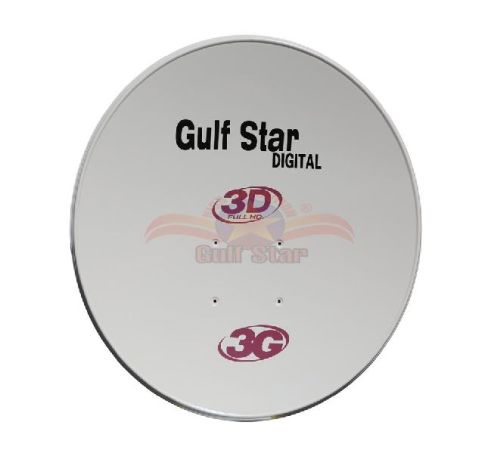

90 CMS Offset D2 Satellite Dish Antenna

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are involved in providing excellent grade range of products from our facility in Mumbai(United Arab Emirates). Only high-grade packaging material has been used for the safe packing of the products. Thus, we make sure that our customers will get only damage-free products from our end. The 90 CMS Offset Dish D2, provided by us, is largely appreciated for its high-performance and long service life.

View More Details

Send Enquiry

Product Details

Technical Specifications

Discription	Specification
Offset Angle	24.62
Aperture-Short Axis	80
Aperture-Long Axis	86
Focus Length	48
S-band Gain @2.5GHz	26 dBi
KU-BAND Gain @12.45GHz	38.6dBi
Elevation	5-85^o
Azimuth	0-360^o
Efficiency	70% min
Finish	Polyester Powder
Color	Gray/Cool Gray
Mounting Type	G/W
Pole Diameter Acceptable	32-48 / 60
Ambient Temperature	-40^oC ~ +60^oC C27
Relative Humidity	0~100%
Net/Gross Weight	9.4kg
Material	Steel
