90 DEGREE CLAMP

abaco 90 degree clamp

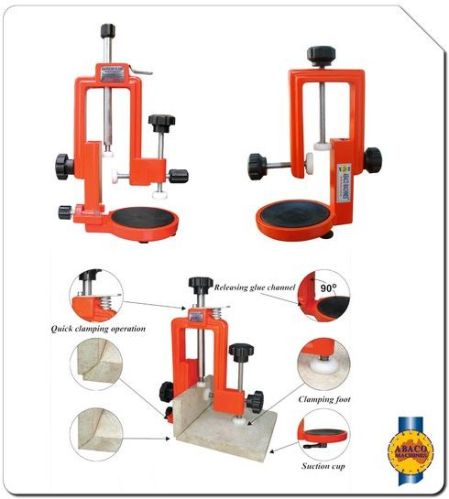

the abaco 90o clamp is designed for perfect positioning and locking fascia (apron) to your countertop via mitre joints. its adjustable jaw allows it to hold various heights and thicknesses. by combing two or more 90o clamps, different lengths can be accommodated for.
with this newly improved version you can:
attach bird mouth mitres ranging from 2mm to 10mm by using the adjusting knob.
hold pressure for an endless amount of time using the extra foot clamp.
clamp on rough surfaces by using the extra foot clamp.
hold and place pressure on mitre joint by adjustable fast action clamp.
90 degree clamp m2
model number: a90c-m2
length inches (mm): 8 38 (213)
width inches (mm): 5 516 (136)
height inches (mm): 12 (305)
material height inches (mm): 7 78 (200)
material thicknessinches (mm):1 58 (40)
net weight per pair pounds (kg): 8.4 ( 3.8)
90 degree clamp m3
model number: a90c-m3
length inches (mm): 8 34 (222)
width inches (mm): 5 516(135)
height inches (mm): 12 14(310)
material height inches (mm): 10 ( 225 )
material thicknessinches (mm):1 58(40)
net weight per pair pounds (kg): 12 ( 5.4 )
