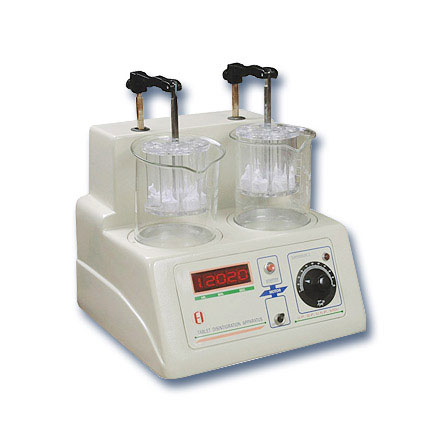

Digital Tablet Disintegration Apparatus is designed for accurate estimation of disintegration time of tablets as per IP/USP standards. The instrument 901 is designed to test two batches of 6 tablets, simultaneously & Model 904 tests single batch of 6 tablets. The unit consists of beakers having capacity of 1000 ml each. In these beakers, suitable disintegration media can be taken . These are temperature controlled using an in-built heater and a highly sensitive thermostat fitted inside the instrument. Microprocessor based time totalizer is provided for accurate time read out.
Features
| Model | 901 | 904 |
| Beaker System | Dual Beaker System | Single Beaker System |
| Tablet System | Dual Basket with 6 Tubes & Guide Disc | Single Basket with 6 Tubes & Guide Disc |
| Time Display | 5 Digit Red LED ½ “ Display | |
| Up and Down Speed | 30 rpm ± 2 rpm | |
| Accuracy | 0.02 | |
| Resolution | 1 sec. | |
| Operating Temp. Range | 0 – 100°C | |
| Power | 230V ± 10%, 50Hz.AC | |
| Dimensions | (Without Rods) 320 x 290 x 290mm (L x B x H) (With Rods) 320 x 290 x 370mm (L x B x H) | |
| Weight | 8 Kgs. (Approx.) | |
| Accessories | Dust Cover, Operation Manual, Glass Jar, Basket with 6 Tubes & Guided Disc | |
