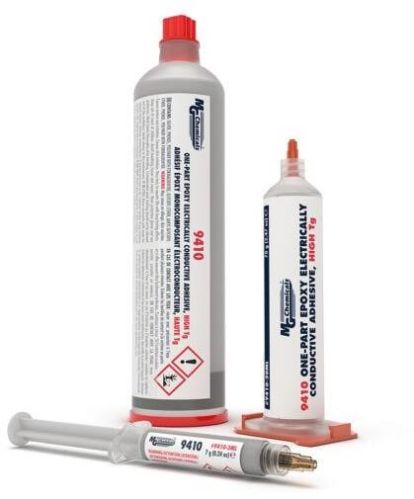

9410 – 1 Part Epoxy Electrically Conductive Adhesive

Listing ID #6988282

This conductive adhesive is a 1-part, heat-cured system with an unlimited working time. It is a silver grey, smooth, thixotropic paste that cures to form a hard, durable, and electrically conductive polymer. It bonds well to a wide variety of substances.

It is an electrical adhesive glue that is designed for semi-conductor flip chip packaging and die attach for small chips, LEDs and diodes. It provides excellent EMI/RFI shielding and is very effective in filling seams between metal plates. It can be readily used in manual, pneumatic, and robotic dispensing processes.

9410 is a silver filled epoxy adhesive that requires no mixing and is designed to simplify processing. It significantly eliminates waste and accelerates productivity while relieving concerns regarding mix ratios, weighing, and working times. It is stable at room temperature and does not require frozen storage.

For a more conductive version, use 9400. We also offer 2-part heat-cured electrically conductive adhesives with 10-minute (8331), 20-minute (8331D), and 4-hour (8331S) working times, as well as thermally conductive alternatives.

Features & Benefits

• High electrical conductivity
• Creates strong permanent electrical connections
• No mixing, unlimited working time
• Cure time: 1 hour at 90 °C (194 °F) or 7 minutes at 150 °C (302 °F)
• Room temperature storage
• Suitable for automated dispensing
