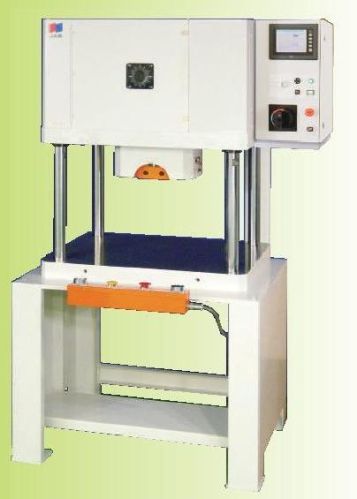

98kN CRANK SERVO PRESS

98kN CRANK SERVO PRESS - SGP 1000N

●This post type frame structure is excellent in the rigidity and exercises to highly accurate processing. Wide bolster area is enough to correspond to a large-scale of mold and owns the high flexibility to adapt to various peripheral devices, like a feeder. And also it is able to use partially of the automation line.

●RAM (Slide) can be synchronized with the peripherals by an arbitrary out- put signal. ● Press Capacity : 98 kN ● Activating Point : 1.3mm ● Stroke Length : MAX. 40mm ● No. of Stroke : MAX. 100 S.P.M ● Open Height : 300mm ● Die Height : 260mm ● Shank Hole : Dia32 X 60L ● Max. Upper Die Mass : 35Kgs ● Adjustment : 25mm ● Power supply : A.C 200VAC,50A, 50/60Hz
