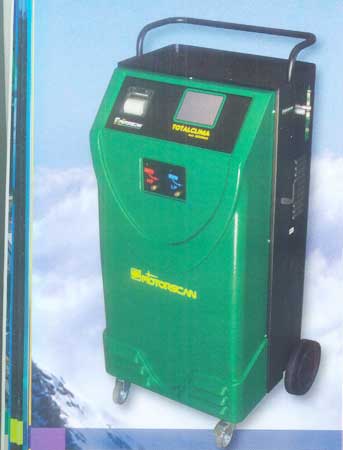

A/C Service Machines

TECHNICAL FEATURES:-

Power supply: 220V - 50Hz

Working temperature: 1 DoC - 50'C

Compressor: 1/3 HP - 12 cc,

Tank: 15 kg (with automatic heating]

Recovery speed: 500 gr/min

Type of refrigerant: R134a

Weight: 80 Kg

Dimensions: 620 x 470 x 1150 mm

Humidity and acidity filters: 2

Vacuum pump: double stage with high efficiency

Vacuum degree: 1 mbar

Display: Touch screen system: back-lighted LCD graphic, resolution 320x240 pixel

Electronic balances: 3 (weighing of gas, of recovered oil, of the new oil to be put in the vehicle]

Printer: graphic 24 columns

Data bank: included approx. 1.000 vehicles, with possibility of updating by Internet. COMMUNICATION PROTOCOLS:-

Keyword 200C

1809141-2

SAE J 1 850 41.6 Kbps PWM

SAE J1850 10.4 Kbps VPW

CAN BUS

Protocolli proprietar dei costrutton FUNCTIONS:-

Recovery

Recycle

Refill

Oil discharge

Vacuum and oil injection

Diagnosis of the modern A/C system The operating procedure is completely automatic and guideed. The station includes two diagnosis: the first one, throught the aid of two temperature probes and of three pressure switches (shown on the display), carries out a functional check on the car system components and indicates the possible anomalies, suggesting also the problem solutions: the second one, unique in the world-wide market, offers the possibility to connect the refill station to the car socket and, by using a comprehensive internal data base, to interact with all the AlC ECU present on vehicles (errors, errors erasing, functioning parameters reading, adjustments, coding, 10 reading, actuators, etc.].
